Removal And Installation: Installation

WARNING: This page is about a different variant/trim than selected.

CAUTION: Make sure that the mating faces are clean and free of foreign material.
- Clean and inspect the cylinder head and cylinder block.
- Check the cylinder head face for distortion, across the center and from corner to corner.
  Refer to: CYLINDER HEAD DISTORTION
CAUTION: Make sure care is taken when handling the cylinder head gasket.

Install the cylinder head and a new cylinder head gasket.

Renew Part: Cylinder head gasket Quantity: 1 .
CAUTION: Make sure that new cylinder head bolts are installed.

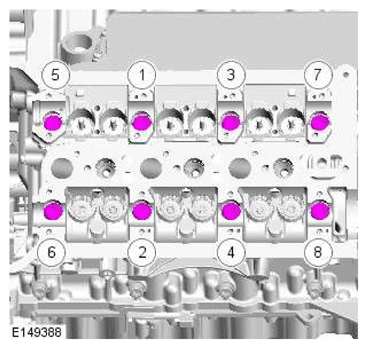

Fig 1: Left Cylinder Head Bolts
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Tighten the bolts in the indicated sequence.

Renew Part: Cylinder head bolts Quantity: 8 .

Torque Specification: 20 Nm
Fig 2: Left Cylinder Head Bolts
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Tighten the bolts in the indicated sequence.

Torque Specification: 35 Nm
Fig 3: Left Cylinder Head Bolts
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Slacken the bolts in the sequence shown.
Fig 4: Left Cylinder Head Bolts
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Tighten the bolts in the indicated sequence.

Torque Specification: 35 Nm
Fig 5: Left Cylinder Head Bolts
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Tighten the bolts in the indicated sequence.

Torque Specification: 90°
Fig 6: Left Cylinder Head Bolts
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Tighten the bolts in the indicated sequence.

Torque Specification: 120°
Fig 7: Left Cylinder Head Bolts
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Tighten the bolts in the indicated sequence.

Torque Specification: 25 Nm
Fig 8: Cylinder Head Tappets Bolts
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Tighten the bolts in the indicated sequence.

Torque Specification: 12 Nm
CAUTION: If a new cylinder head has been installed then new tappets must be installed.

Lubricate the valve tappets with clean engine oil.

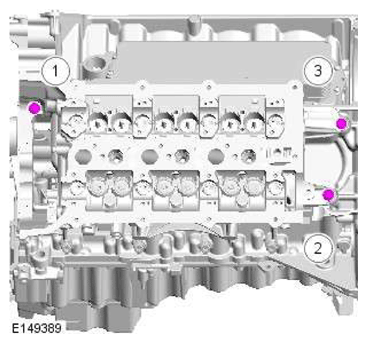

Torque Specification: 12 Nm

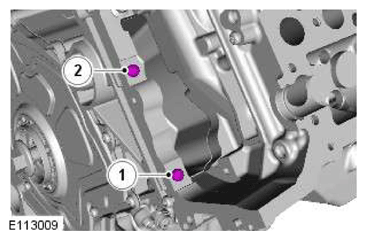

Torque Specification: 10 Nm

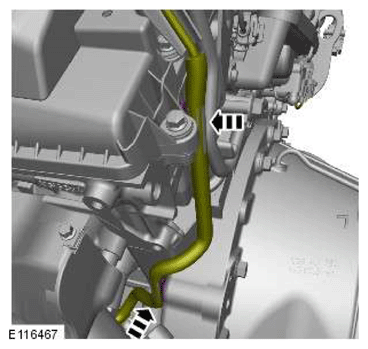

Inspect the seals and replace if damaged or worn.

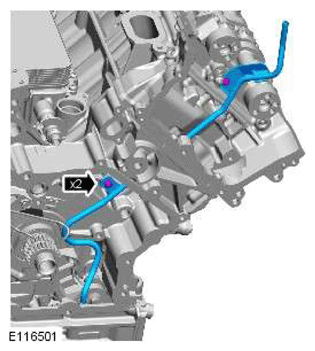

Torque Specification: 10 Nm
Torque Specification: 20 Nm
Torque Specification: 25 Nm
Install the camshaft.
Refer to: LEFT CAMSHAFT
Install the exhaust manifold.
Refer to: LEFT EXHAUST MANIFOLD
Connect the startup battery ground cable.
Refer to: SPECIFICATIONS
