Removal And Installation: Removal

WARNING: This page is about a different variant/trim than selected.
CAUTION: Make sure that the orientation and code on the top of the camshaft bearing caps is noted (along with the bank - A or B), so that on installation the components are installed to their original position. Failure to follow this instruction may cause damage to the vehicle.
NOTE: Removal steps in this procedure may contain installation details.
  1. Disconnect the battery ground cable.

    Refer to: SPECIFICATIONS

  2. WARNING: Make sure to support the vehicle with axle stands.
  3. Refer to: TIMING DRIVE COMPONENTS

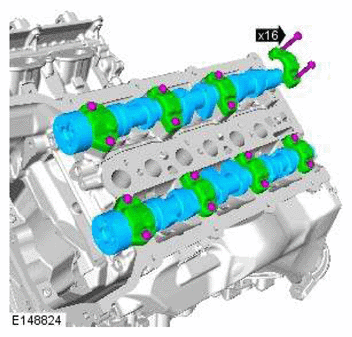

  4. CAUTION: Rotate the camshafts until all the valves are at their minimum open point.
    NOTE: Remove the camshaft bearing caps.
    NOTE: Their position, orientation and markings. Each is marked with its position (number) and an orientation (arrow).
    G11606648
