Removal And Installation: Installation

WARNING: This page is about a different variant/trim than selected.
  1. CAUTION: Make sure that the mating faces are clean and free of foreign material.
    G11607159
  2. CAUTION: Take extra care not to damage the mating faces.

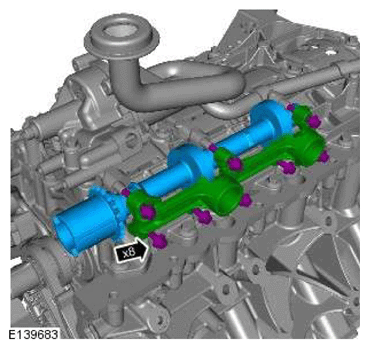

    G11607158

    Torque Specification: 12 Nm

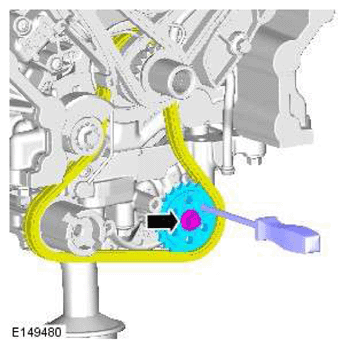

  3. G11607156

    Torque Specification: 21 Nm

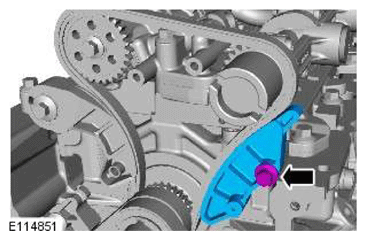

  4. G11607157

    Torque Specification: 12 Nm

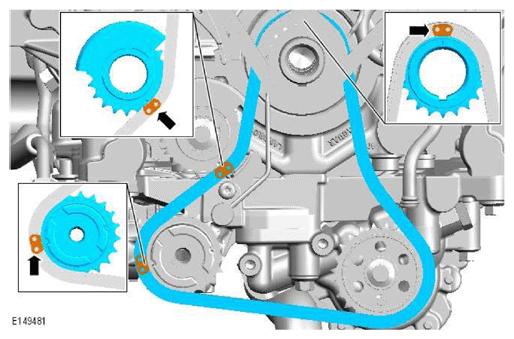

  5. G11607163

    Install the lower timing chain making sure the colored chain links align correctly with the fuel rail high-pressure fuel pumps camshaft and crankshaft sprocket markings.

  6. CAUTION: Make sure that the tensioner spring is correctly located.
    G11607155

    Torque Specification: 21 Nm

  7. Refer to: OIL PAN EXTENSION
  8. Connect the battery ground cable.

    Refer to: SPECIFICATIONS
