General Procedures: Check

WARNING: This page is about a different variant/trim than selected.

NOTE:

Some components shown removed for clarity.
Some variation in the illustrations may occur, but the essential information is always correct.

Disconnect the battery ground cable.
Refer to: SPECIFICATIONS
WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Remove the engine undershield.
Refer to: ENGINE UNDERSHIELD
Drain the engine oil.
Refer to: ENGINE OIL DRAINING AND FILLING
CAUTION:
- Only rotate the crankshaft clockwise.
- Make sure that the crankshaft is fully locked.
- Special Tool(s): JLR-303-1303

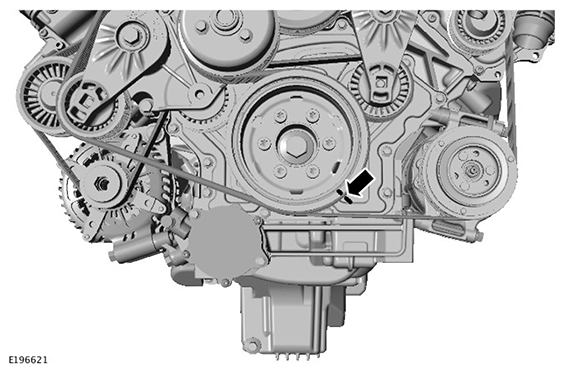

Using a suitable marker, mark the position of the crankshaft pulley as illustrated.
WARNING: Discard the seal.
- Special Tool(s): JLR-303-1303
- Special Tool(s): JLR-303-1621
CAUTION: Do not use excessive force when adjusting the crankshaft position.

NOTE: If the crankshaft timing tool cannot be installed, adjustment of the fuel pump camshaft timing will be required.
- If required, carefully adjust the crankshaft position to allow correct installation of the special tool.
- If the crankshaft timing tool cannot be installed, adjustment of the fuel pump camshaft timing will be required.
- Special Tool(s): JLR-303-1303
- Special Tool(s): JLR-303-1621
CAUTION: Install a new seal.

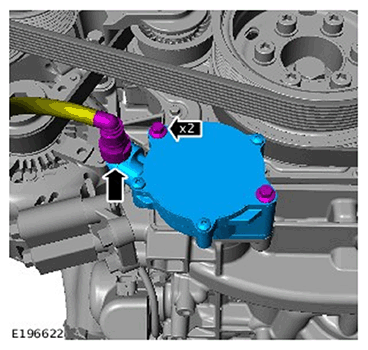

- Renew Part: Brake vacuum pump seal Quantity: 1 .
  Torque Specification: 12 Nm
- Special Tool(s): JLR-303-1303
- Torque Specification: 10 Nm
Refill the engine with oil.
Refer to: ENGINE OIL DRAINING AND FILLING
Install the engine undershield.
Refer to: ENGINE UNDERSHIELD
Connect the battery ground cable.
Refer to: SPECIFICATIONS
