Removal And Installation: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

Disconnect the battery ground cable.
Refer to: SPECIFICATIONS
WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Refer to: TRANSMISSION - V6 S/C 3.0L PETROL
CAUTION: Install all the bolts finger tight before final tightening.

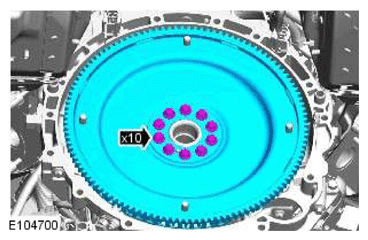

NOTE: Make sure the crankshaft and flexplate mating faces are clean before installation.

Renew Part: Flexplate bolts Quantity: 1 .

Torque Specification:

Stage 1: 45 Nm

Stage 2: 90°
