General Procedures: Draining

WARNING: This page is about a different variant/trim than selected.
WARNING: The spilling of hot engine oil is unavoidable during this procedure, care must be taken to prevent scalding.
CAUTION: Make sure the engine is warm.
    • Start the engine and allow to run for 10 minutes, stop the engine.
  2. Refer to: ENGINE COVER - V6 S/C 3.0L PETROL/V8 N/A 5.0L PETROL/V8 S/C 5.0L PETROL
  3. CAUTION: Allow 10 minutes from turning the engine off before starting oil extraction.

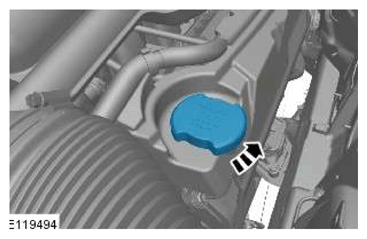

    G11606566

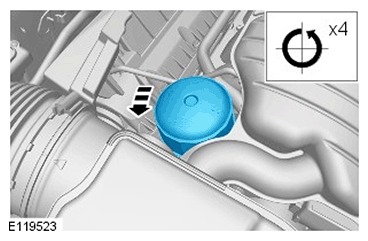

  4. G11686125
    • Loosen the element cover 4 complete turns to allow engine oil to drain from the filter cover.

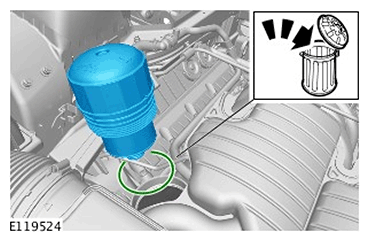

  5. G11686126
  6. CAUTION: Discard the seal.

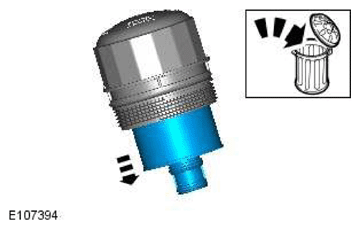

    G11606569
  7. G11606596
    • Using the oil vacuum pump drain the oil out through the oil extraction tube.

      Special Tool(s): 303-1484  , 303-1484-01

    • Remove the oil vacuum pump.
