General Procedures: Draining

WARNING: This page is about a different variant/trim than selected.
WARNING: The spilling of hot engine oil is unavoidable during this procedure, care must be taken to prevent scalding.
CAUTION: Correct installation of the oil filler cap can be obtained by tightening the cap until hard stop.
NOTE: Clean the components general area prior to dismantling.
    • Start the engine and allow to run for 10 minutes, stop the engine.
  2. G11606566
  3. Refer to: ENGINE COVER - V6 S/C 3.0L PETROL/V8 N/A 5.0L PETROL/V8 S/C 5.0L PETROL

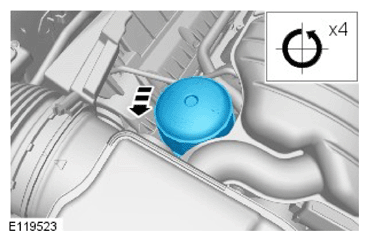

  4. G11756744
    • Loosen the element cover 4 complete turns to allow engine oil to drain from the filter cover.
    • Make sure that the O-ring seal is exposed.
  5. NOTE: Allow 10 minutes for the engine oil to drain from the oil filter housing.
    G11686126
  6. G11606569

    Remove and discard the oil filter element.

  7. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  8. Refer to: ENGINE UNDERSHIELD

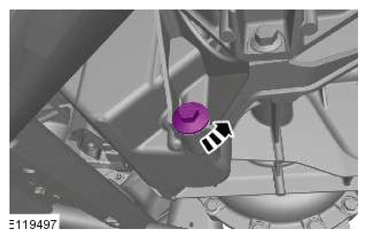

  9. CAUTION: Be prepared to collect escaping oil.
    NOTE: Discard the sealing washer.
    G11606570
