Engine (Installation): Installation: Part(S)
WARNING: This page is about a different variant/trim than selected.
| STEP | PART NAME | QUANTITY |
|---|---|---|
| Step 21 | Steering column lower shaft lower bolt | 1 |
NOTE:
Some variation in the illustrations may occur, but the essential information is always correct.
-
WARNING: Make sure to support the vehicle with axle stands.
Raise and support the vehicle.
-
NOTE: This step requires the aid of another technician.

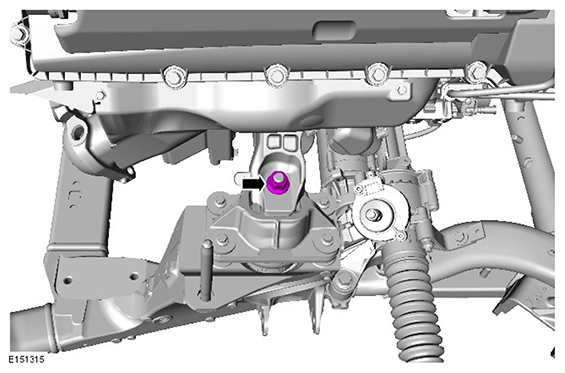

Torque Specification: 110 Nm
Torque Specification: 110 Nm
Torque Specification: 9 Nm

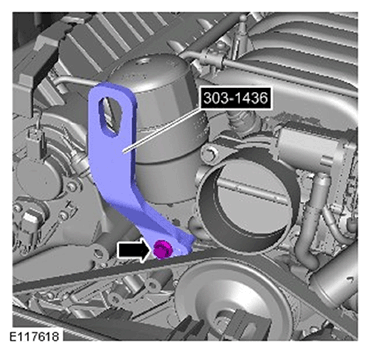

Special Tool(s): 303-1436
Torque Specification: 25 Nm

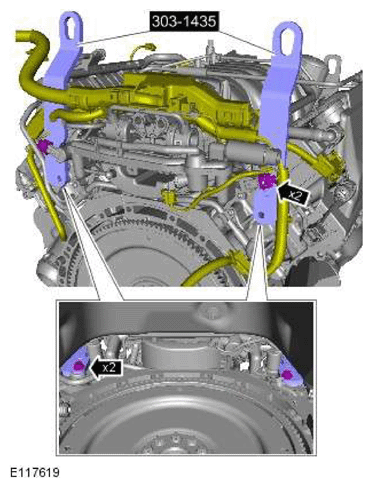

Special Tool(s): 303-1435
Torque Specification: 7 Nm
-
NOTE: Remove and discard the blanking caps.
Torque Specification: 25 Nm
Torque Specification: 12 Nm

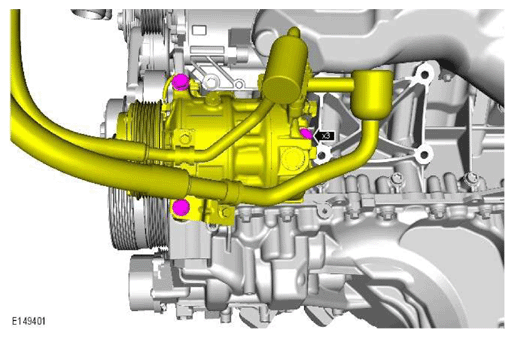

Remove the tie strap and, install the A/C compressor.
Torque Specification: 25 Nm
-
NOTE: Remove and discard the blanking caps.
-
NOTE: Remove and discard the blanking caps.
-
WARNING: Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel related components. Highly flammable vapors are always present and may ignite. Failure to follow these instructions may result in personal injury.CAUTION: Be prepared to collect escaping fuel.NOTE: Remove and discard the blanking caps.
-
NOTE: Remove and discard the blanking caps.
-
NOTE: Left hand drive only.
Install a new bolt.
Renew Part: Steering column lower shaft lower bolt Quantity: 1 .
Torque Specification: 30 Nm
Torque Specification: 9 Nm
- Refer to: TRANSMISSION - V6 S/C 3.0L PETROL
- Refer to: RADIATOR
- Refer to: HOOD
- Refer to: SECONDARY BULKHEAD CENTER PANEL - V6 S/C 3.0L PETROL
- Connect the battery ground cable.
Refer to: SPECIFICATIONS
- Refer to: ENGINE OIL DRAINING AND FILLING
