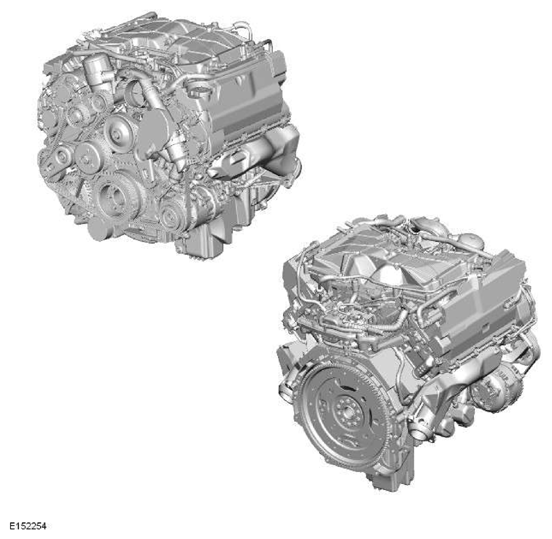

External View

The V6 Supercharged (SC) 3.0L Petrol engine is a liquid cooled V6 unit featuring Direct Injection (DI), four overhead camshafts and four valves per cylinder.

The main structural components of the engine are all manufactured from aluminum alloy. The engine is built around a very stiff, lightweight, enclosed V, deep skirt cylinder block. A structural windage tray is bolted to the bottom of the cylinder block to further improve the block stiffness, minimize Noise, Vibration and Harshness (NVH) and help reduce oil foaming. To further enhance the stiffness of the lower engine structure, a heavily ribbed sump body is installed. The sump body also helps to reduce engine noise.

The engine uses a Bosch High Pressure (HP) DI fuel system with fuel pressure provided by two, cam driven HP pumps which are driven by a dedicated camshaft. Each HP pump supplies a fuel rail which in turn supplies the three injectors for that bank with fuel at a controlled pressure.

The four camshafts incorporate the Variable Camshaft Timing (VCT). The VCT allows the timing of the intake and exhaust valves to be adjusted independently of each other. The VCT system is controlled by the Bosch Powertrain Control Module (PCM) using information from Camshaft Position (CMP) sensors.

The supercharger is located in the 'vee' of the engine and is driven from the crankshaft by a dedicated secondary auxiliary drive belt.

The engine meets EU6 emission regulations in Europe and Rest of World (ROW) and ULEV 70 emission regulations in North American Specification (NAS) markets.

The DI system, advanced piston and combustion chamber design and the supercharger provide improved fuel consumption and emissions.

Various engine systems are located on the engine assembly and driven directly and indirectly by the engine operation. Refer to relevant section for the further information:

Engine cooling

For additional information, refer to: ENGINE COOLING

Supercharger cooling

For additional information, refer to: SUPERCHARGER COOLING

Fuel system

For additional information, refer to: FUEL TANK AND LINES

Accessory drive

For additional information, refer to: ACCESSORY DRIVE

Starting system

For additional information, refer to: STARTING SYSTEM

Supercharger

For additional information, refer to: INTAKE AIR DISTRIBUTION AND FILTERING

Electronic engine controls

For additional information, refer to: ELECTRONIC ENGINE CONTROLS

TECHNICAL SPECIFICATIONS

DESCRIPTION	SPECIFICATION
	3.0L V6 S/C Petrol (340PS)	3.0L V6 S/C Petrol (380PS)
Configuration	90° 'V' configuration 6 cylinder	90° 'V' configuration 6 cylinder
Displacement	2995 cc	2995 cc
Bore and Stroke	84.5 X 89 mm	84.5 X 89 mm
Maximum Power	340 PS @ 6500 RPM	380 PS @ 6500 RPM
Maximum Torque	450 Nm @ 3500 - 5000 RPM	450 Nm @ 3500 - 5500 RPM
Compression Ration	10.5:1	10.5:1
