Section 3 (Engine - V6 S/C 3.0L Petrol -- Range Rover/L405)
>>
Engine - V6 S/C 3.0L Petrol
>>
Engine (Description And Operation)
>>
Description And Operation
>>
Description
>>

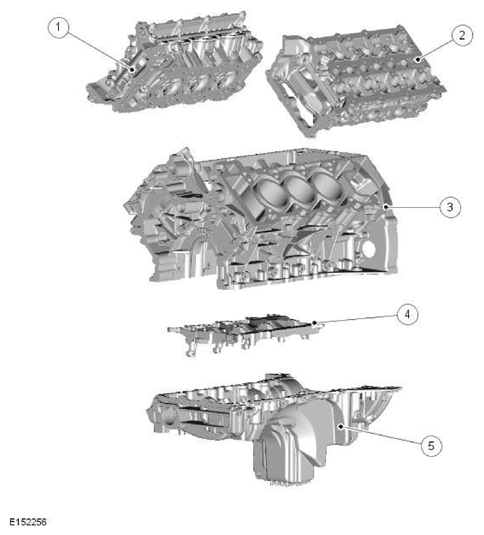

Major Structural Components
Major Structural Components
WARNING:
This page is about a different variant/trim than selected.
ITEM
DESCRIPTION
1
Cylinder head - bank 1
2
Cylinder head - bank 2
3
Cylinder block
4
Windage tray
5
Oil pan
