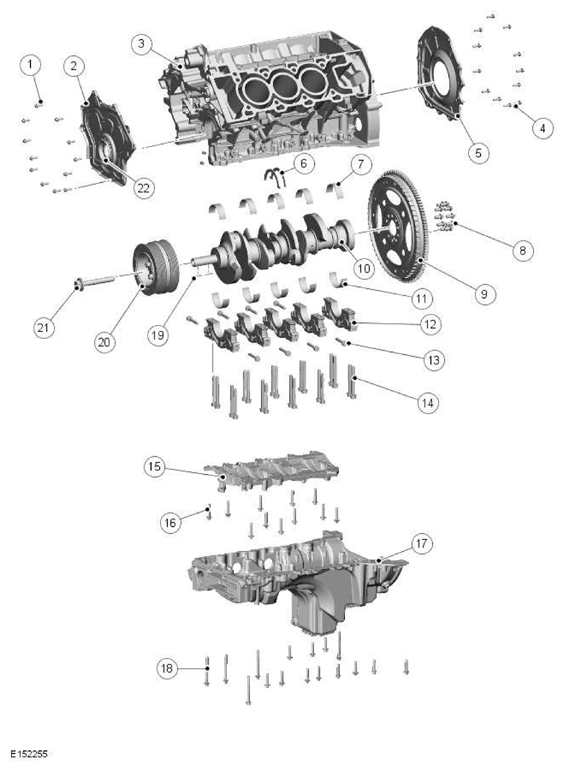

Cylinder Block Components

WARNING: This page is about a different variant/trim than selected.

ITEM	DESCRIPTION
1	Bolt - 12 of
2	Cylinder block front cover
3	Cylinder block
4	Bolt - 12 of
5	Cylinder block rear cover and oil seal
6	Thrust washer - 2 of
7	Upper main bearing - 5 of
8	Bolt - 10 of
9	Drive plate
10	Crankshaft
11	Lower main bearing - 5 of
12	Crankshaft main bearing cap - 5 of
13	Cross bolt with sealing washers-crankshaft main bearing cap
14	Inner and outer bolts - crankshaft main bearing cap - 20 of
15	Windage tray
16	Bolt - 11 of
17	Oil pan
18	Bolt - 16 of
19	Woodruff key - 2 of
20	Crankshaft pulley/vibration damper assembly
21	Crankshaft damper bolt
22	Crankshaft front oil seal
