Lubrication System
WARNING: This page is about a different variant/trim than selected.

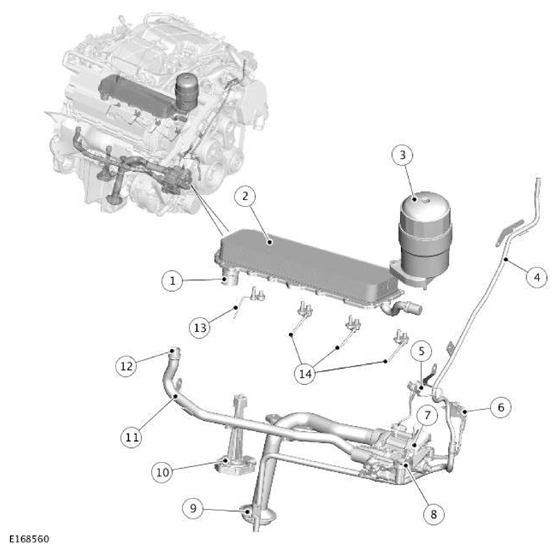

| ITEM | DESCRIPTION |
|---|---|
| 1 | Anti-drain valve Oil cooler |
| 2 | Oil cooler |
| 3 | Oil filter |
| 4 | Oil evacuation tube |
| 5 | Upper timing chain lubrication jet |
| 6 | Electrical connector |
| 7 | Oil pump |
| 8 | Lower timing chain lubrication jet |
| 9 | Oil pick-up |
| 10 | Oil level and temperature sensor |
| 11 | Oil pump outlet tube |
| 12 | Outlet tube connection to right cylinder block |
| 13 | Rear dynamic balancer drive chain lubrication jet |
| 14 | Piston cooling jets |
