Exhaust Manifolds
WARNING: This page is about a different variant/trim than selected.
NOTE:

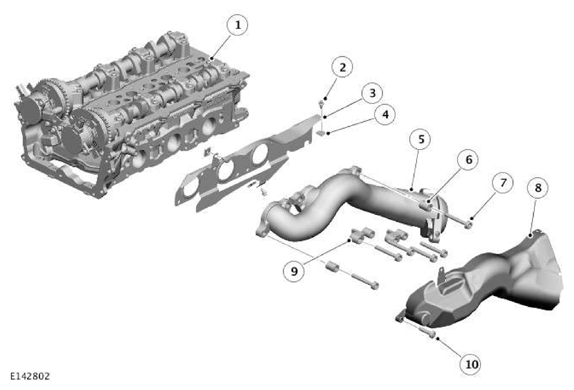

Left (Bank 2) installation shown, right (Bank 1) is similar.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Cylinder head |
| 2 | Bolt - 3 of |
| 3 | Layered gasket |
| 4 | Threaded insert - 3 of |
| 5 | Exhaust manifold |
| 6 | Spacer - 4 of |
| 7 | Bolt - 6 of |
| 8 | Heat shield |
| 9 | Machined spacer - 2 of |
| 10 | Bolt |
The high silicon molybdenum cast iron exhaust manifolds are unique for each cylinder bank. Each exhaust manifold installation includes a layered metal gasket and heat shields. Spacers on the securing bolts allow the manifolds to expand and contract with changes of temperature while maintaining the clamping loads.
