Removal And Installation: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

Disconnect the battery ground cable.
Refer to: SPECIFICATIONS
WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Refer to: OIL PAN EXTENSION

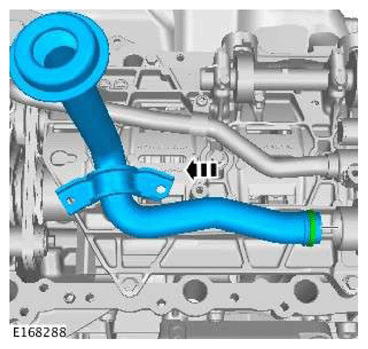

CAUTION: Take extra care not to damage the component.

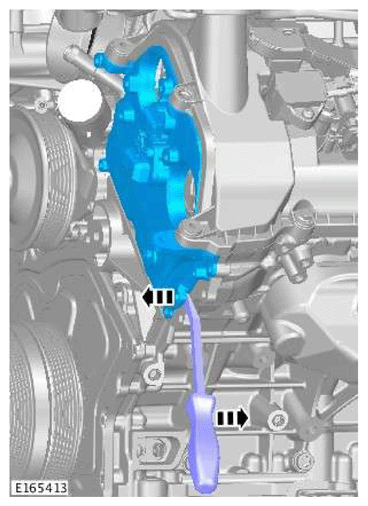

NOTE: Make sure to use the aluminum lug provided on the timing cover to lever against.
CAUTION: Take extra care not to drop the bolt.

Hold the bolt with a magnet to prevent it from dropping.
Make sure the crankshaft is at the timed position.
multimedia:A supplement to the article is available.

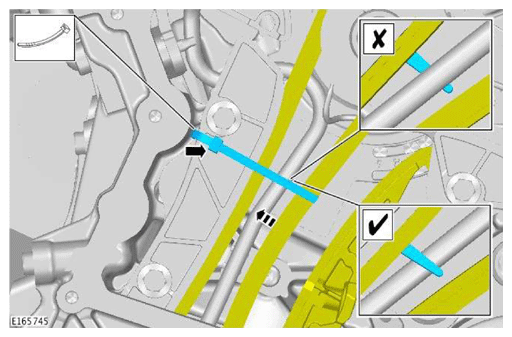

CAUTION: Using a tie strap, make sure the tension is maintained on the timing chain.

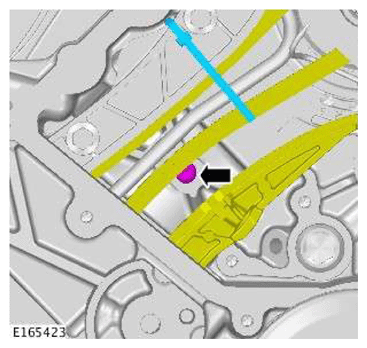

CAUTION: Use only a long torx socket or torx driver. Do not use a small torx socket, as it may damage the timing chain.

Hold the bolt with a magnet to prevent it from dropping.

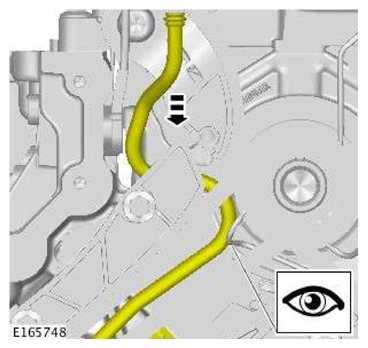

CAUTION: Take extra care not to damage the oil jet.

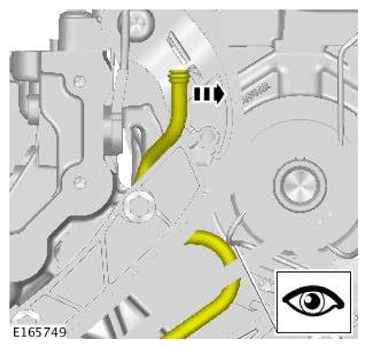

CAUTION: Take extra care not to damage the oil jet.

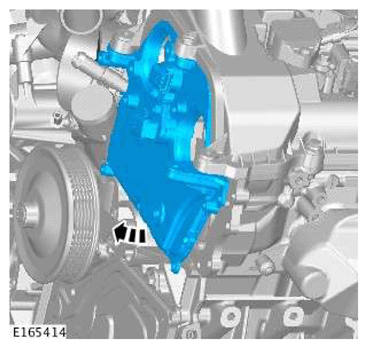

CAUTION: Take extra care not to damage the surrounding components.
CAUTION: Using a suitable tool, lock the component.
NOTE: Remove and discard the O-ring seal.
CAUTION: Discard the bolt.

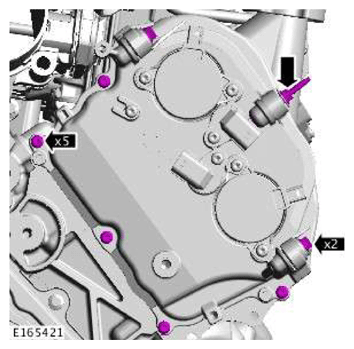

CAUTION: Take extra care not to damage the component.
CAUTION: Remove and discard the O-ring seal.
