Removal And Installation: Installation

WARNING: This page is about a different variant/trim than selected.
  1. CAUTION: A new O-ring seal is to be installed.
    G11607228

    Lubricate the new O-ring seal.

    Renew Part: Oil pump O-ring seal  Quantity: 1  .

  2. CAUTION: Install the component in the sequence shown.
    G11607230

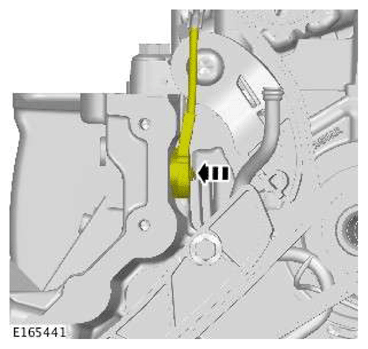

  3. CAUTION: Take extra care when installing the component.
    G11607231
  4. CAUTION: Make sure that a new bolt is installed.
    G11607225

    Renew Part: Oil pump connector bolt  Quantity: 1  .

    Torque Specification: 12 Nm

  5. G11607224
  6. G11607223

    Torque Specification: 25 Nm

  7. G11607222

    Torque Specification: 12 Nm

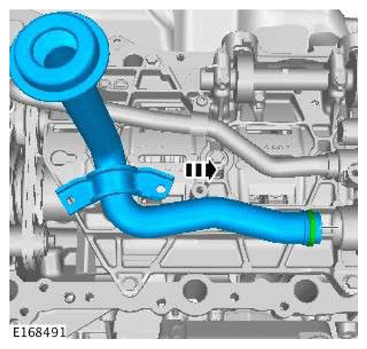

  8. CAUTION: A new O-ring seal is to be installed.
    G11607236

    Lubricate the O-ring seal.

    Renew Part: Oil pump O-ring seal  Quantity: 1  .

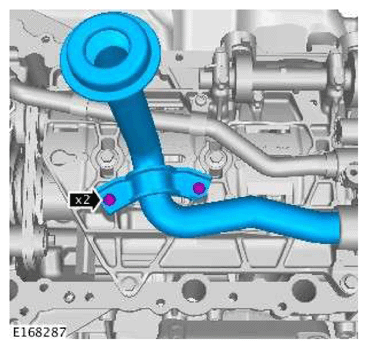

  9. G11607220

    Torque Specification: 12 Nm

  10. G11607238

    Torque Specification: 21 Nm

  11. G11607239
  12. NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
    G11607240

    Using a suitable tool, compress the timing chain tensioner.

  13. CAUTION: Using a suitable tool, lock the component.
    G11607219

    Torque Specification: 21 Nm

  14. NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
    multimedia:A supplement to the article is available.
    • Install the lower timing chain making sure the colored chain links align correctly with the fuel rail high-pressure fuel pumps camshaft, balance weight and crankshaft sprocket markings.

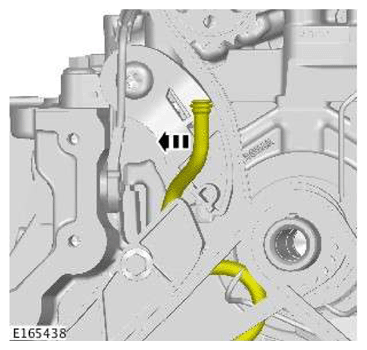

  15. CAUTION: Take extra care not to damage the oil jet.
    G11607243

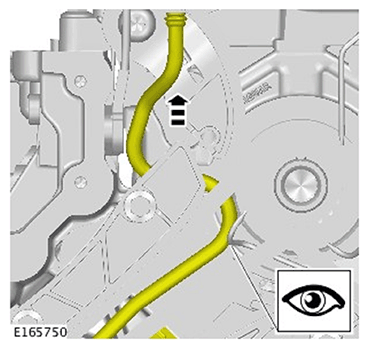

  16. CAUTION: Take extra care not to damage the oil jet.
    G11712893

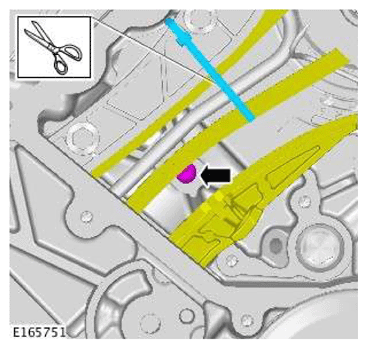

  17. CAUTION: Use only a long torx socket or torx driver. Do not use a small torx socket, as it may damage the timing chain.
    G11607245

    Hold the bolt with a magnet to prevent it from dropping.

    Torque Specification: 10 Nm

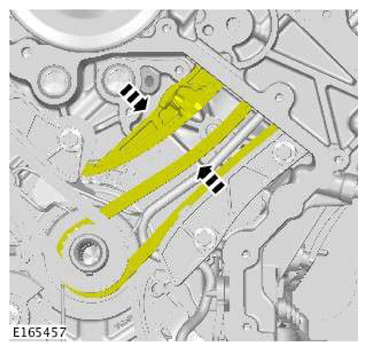

  18. G11607247
  19. multimedia:A supplement to the article is available.

    Torque Specification: 12 Nm

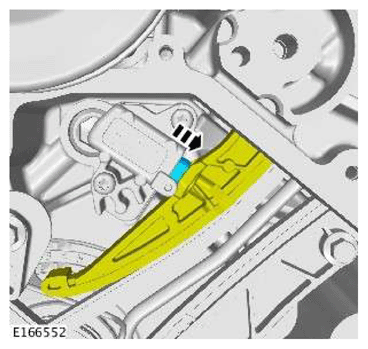

  20. G11607248

    Rotate the crankshaft a full turn clockwise to settle the components.

  21. G11607089

    The piston should apply tension to the timing chain guide.

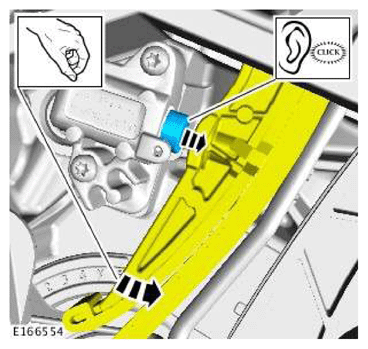

  22. G11607250

    Apply tension then adjust the timing chain guide.

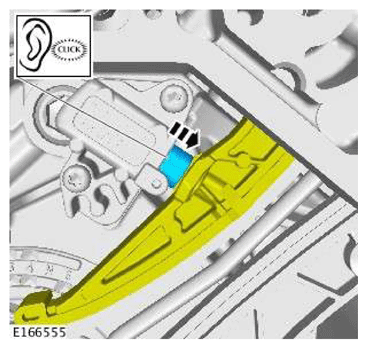

  23. G11607251

    The piston should eject slightly, and an audible click should be heard.

  24. G11607090

    If the piston can be pushed back, repeat steps  19- 22 to reset the tensioner.

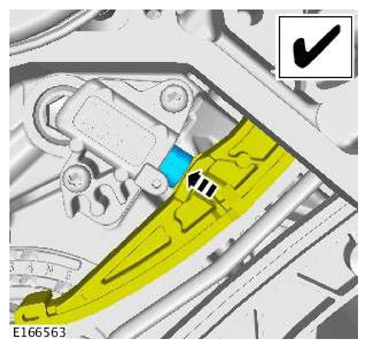

  25. G11607253

    If the piston will not retract, and tension is on the chain. The tensioner is correct.

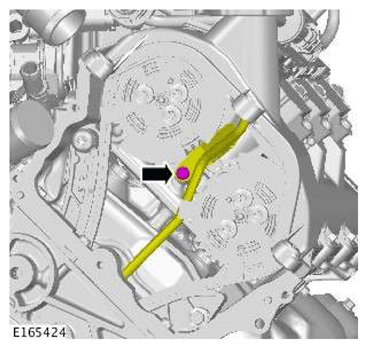

  26. G11607211

    Hold the bolt with a magnet to prevent it from dropping.

    Torque Specification: 10 Nm

  27. NOTE: Make sure that all traces of the old sealant are removed from the mating faces.
    G11607255
  28. G11607256

    Apply RTV sealant (Loctite 5901 G or Loctite 5900) to the areas shown, and tighten the bolts within 7 minutes.

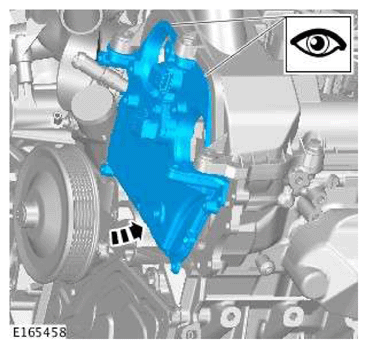

  29. CAUTION: Take extra care not to damage the seal when installing the component.
    G11607257

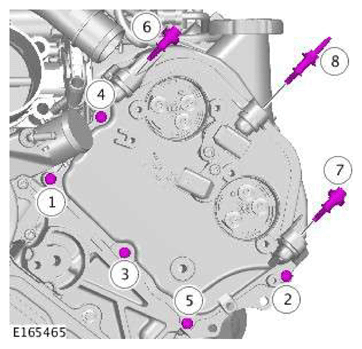

  30. NOTE: Tighten the retaining bolts in the indicated sequence.
    Fig 1: Lower Timing Cover Bolts
    G11607258Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    13

    Torque Specification: 12 Nm

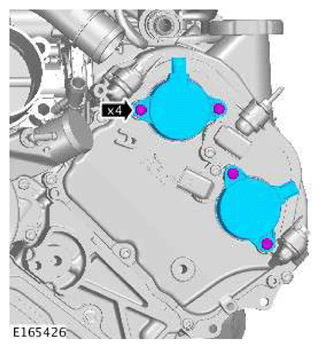

  31. G11607207

    Torque Specification: 10 Nm

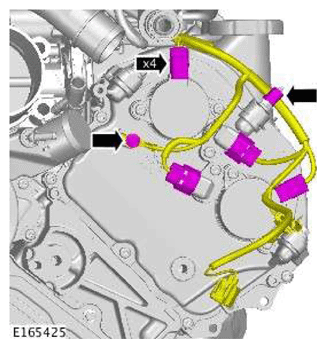

  32. G11607206

    Torque Specification: 10 Nm

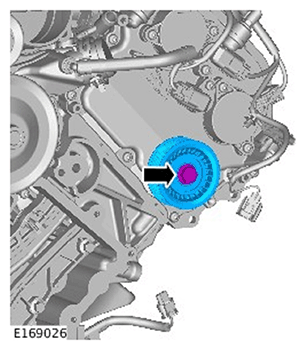

  33. G11712854

    Torque Specification: 48 Nm

  34. G11712853

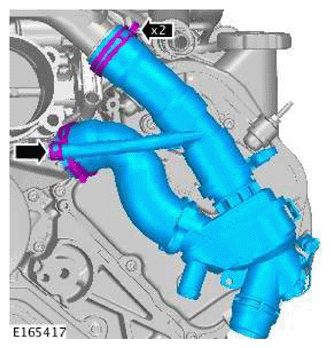

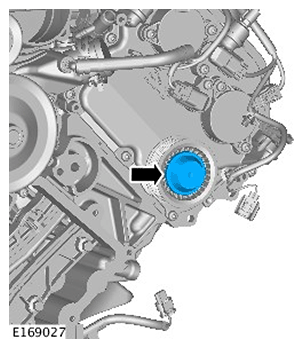

  35. G11607205

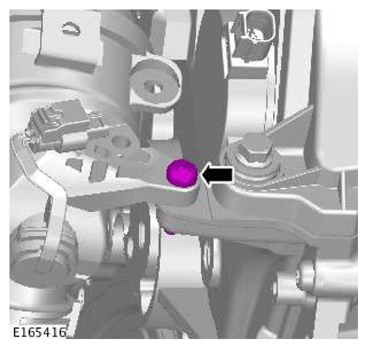

  36. G11607204

    Torque Specification: 10 Nm

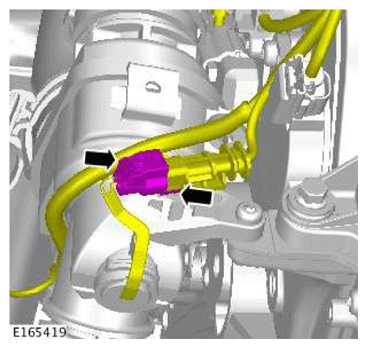

  37. G11607203

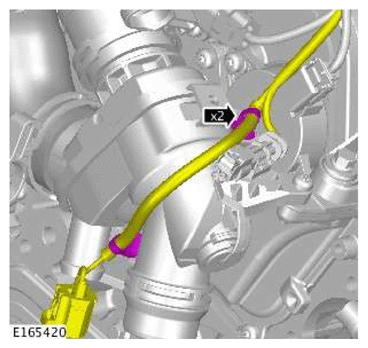

  38. G11607202
  39. Refer to: OIL PAN EXTENSION
  40. Connect the battery ground cable.

    Refer to: SPECIFICATIONS
