Fuel Filler Pipe
WARNING: This page is about a different variant/trim than selected.

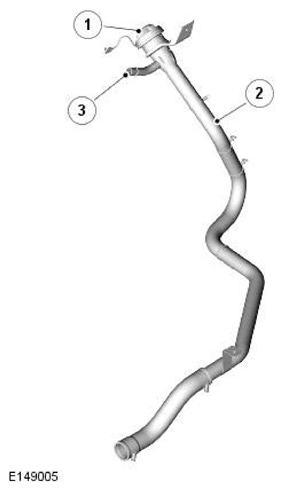

| ITEM | DESCRIPTION |
|---|---|
| 1 | Fuel Filler Cap |
| 2 | Fuel Filler Pipe |
| 3 | Refuelling Breather Pipe Connection |
The fuel filler pipe locates into the tank and incorporates a spit back flap in the tank end of the pipe. The flap is spring loaded cover which acts as one way valve. This allows the tank to be filled but preventing fuel leaving the tank into the filler pipe.
A connection at the top right side of the filler head allows for the connection of the fuel tank ventilation/breather pipe which goes to the tank. On NAS vehicles only, this connection will only be used for the evaporative emissions system, as the refuelling breather is routed to the charcoal canister.
For additional information, refer to: EVAPORATIVE EMISSIONS
