V6 3.0L S/C Petrol - All Markets Except NAS
WARNING: This page is about a different variant/trim than selected.

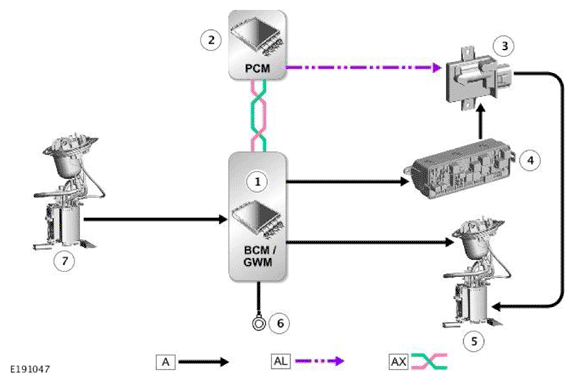

A = HARDWIRED; AL = PULSE WIDTH MODULATION (PWM); AX = FLEXRAY
| ITEM | DESCRIPTION |
|---|---|
| 1 | Body Control Module/Gateway Module (BCM/GWM) |
| 2 | Powertrain Control Module (PCM) |
| 3 | Fuel Pump Driver Module (FPDM) |
| 4 | Rear Junction Box (RJB) |
| 5 | Fuel pump module - Low Pressure (LP) fuel pump |
| 6 | Ground |
| 7 | Fuel pump module - Fuel level sensor output |
