V6 3.0L S/C Petrol - All Markets Except NAS
WARNING: This page is about a different variant/trim than selected.

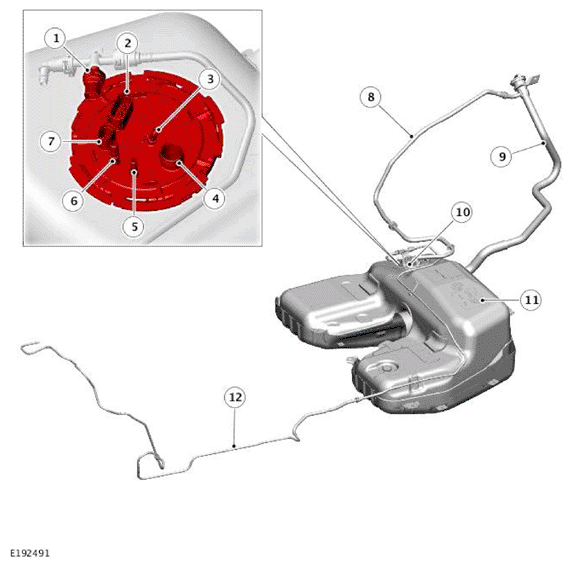

| ITEM | DESCRIPTION |
|---|---|
| 1 | Fuel low pressure sensor |
| 2 | Electrical connector |
| 3 | Fuel Fired Booster Heater (FFBH) pipe connection |
| 4 | Fuel tank refueling breather connection |
| 5 | Fuel tank ventilation pipe connection to evaporative emissions canister |
| 6 | Fuel supply line connection |
| 7 | Electrical connector |
| 8 | Fuel tank refueling breather pipe |
| 9 | Fuel filler pipe |
| 10 | Fuel pump module |
| 11 | Fuel tank |
| 12 | Fuel supply line |
