Removal And Installation: Removal

WARNING: This page is about a different variant/trim than selected.
WARNING: After carrying out repairs, the fuel system must be checked visually for leaks. Failure to follow this instruction may result in personal injury.
CAUTION: Make sure the workshop area in which the vehicle is being worked on is as clean and as dust free as possible. Foreign matter from work on clutches, brakes or from machining or welding operations can contaminate the fuel system and may result in later malfunction.
NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Refer to: PETROL AND PETROL-ETHANOL FUEL SYSTEMS HEALTH AND SAFETY PRECAUTIONS
  3. Disconnect the battery ground cable.

    Refer to: SPECIFICATIONS

  4. Refer to: FUEL TANK DRAINING

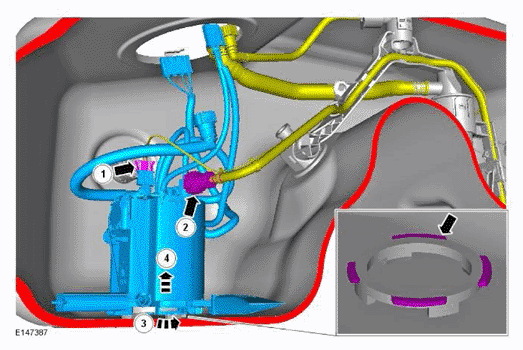

  5. G11708487
