Removal And Installation: Removal

WARNING: This page is about a different variant/trim than selected.
WARNING: Be prepared to collect escaping fluids.
CAUTION: Make sure all suitable safety precautions are taken to protect the TCM and main control valve body electrical connector pins against electrostatic discharge.
NOTE:
  • The transmission control module (TCM) is part of the main control valve body and cannot be serviced separately.
  • Some variation in the illustrations may occur, but the essential information is always correct.

All vehicles

  1. Remove the transmission fluid pan.

    Refer to: TRANSMISSION FLUID PAN, GASKET AND FILTER .

    Vehicles with Stop/Start

  2. CAUTION: Take precautions to avoid any electrostatic charging, which could damage this component.
    G11599721

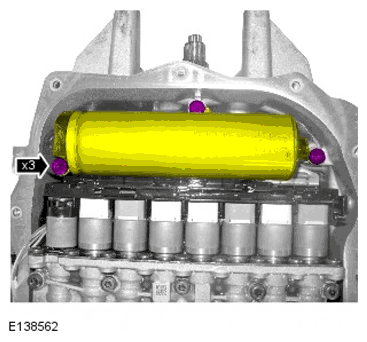

  3. G11599722
  4. G11599723

    All vehicles

  5. CAUTION: Take precautions to avoid any electrostatic charging, which could damage this component.

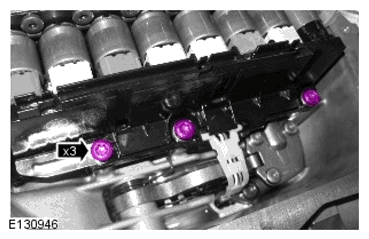

    G11599724

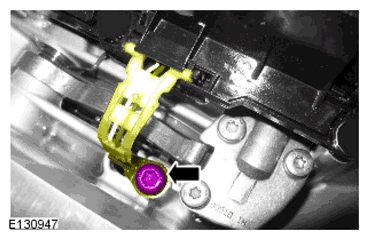

  6. G11599725

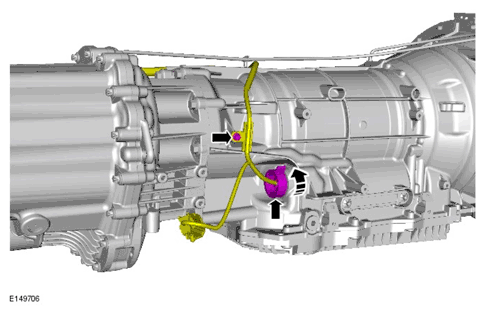

  7. G11700110
  8. NOTE: Note the orientation of the component prior to removal.
    G11599727

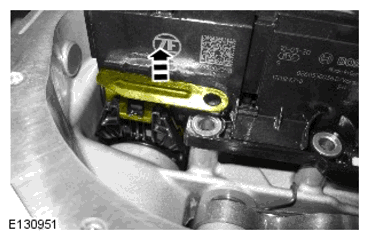

  9. G11599728

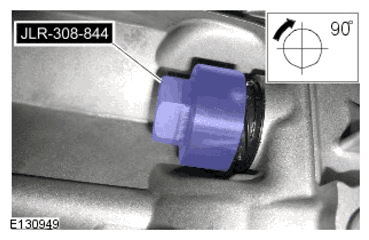

  10. G11599729

    Special Tool(s): JLR-308-844

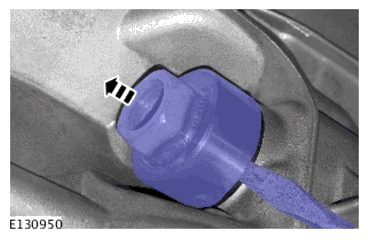

  11. G11599730
  12. CAUTION: Discard the bolts.

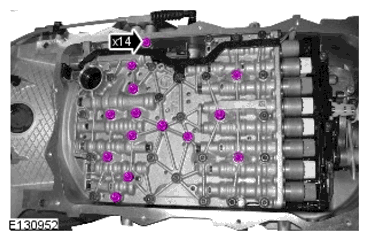

    G11599731

    Torque Specification: 8 Nm

    NOTE: Note the position of the manual park brake release.
  13. G11599732
