Removal And Installation: Installation

WARNING: This page is about a different variant/trim than selected.

All vehicles

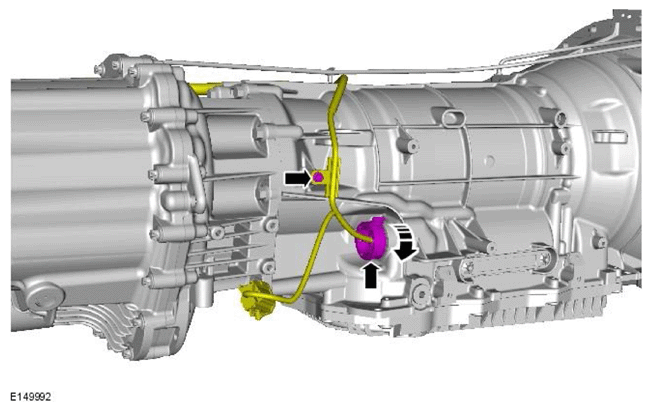

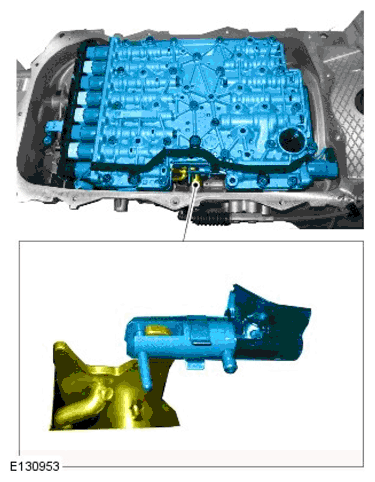

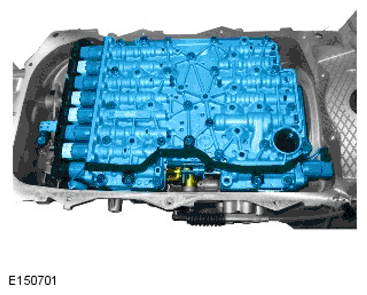

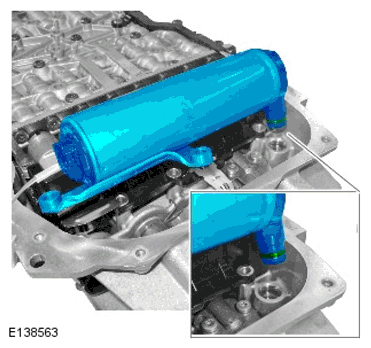

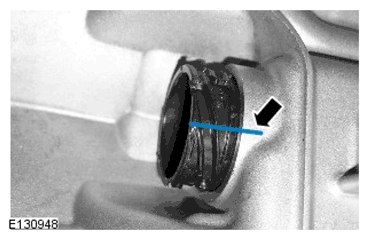

NOTE: Make sure that the component is installed to the noted removal position.

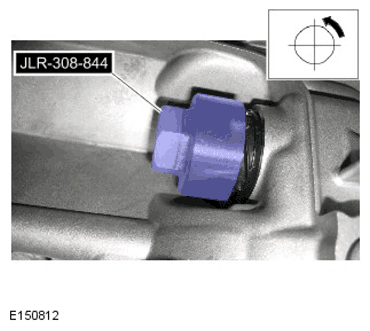

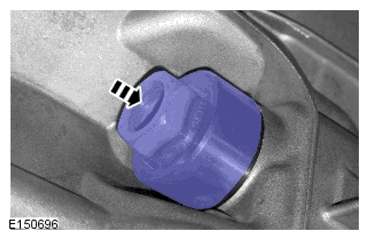

- Special Tool(s): JLR-308-844

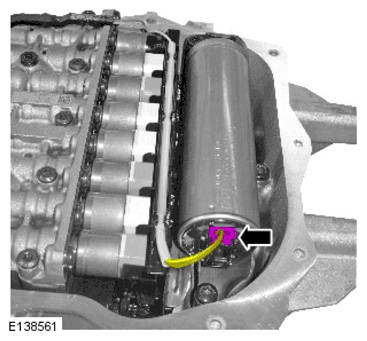

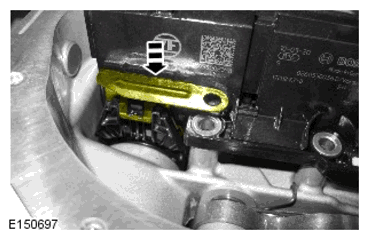

CAUTION: Make sure that the electrical connector is installed in the correct orientation as noted in the removal step.
Torque Specification: 10 Nm
CAUTION: Make sure that new bolts are installed.

NOTE: Tighten the retaining bolts evenly and progressively.

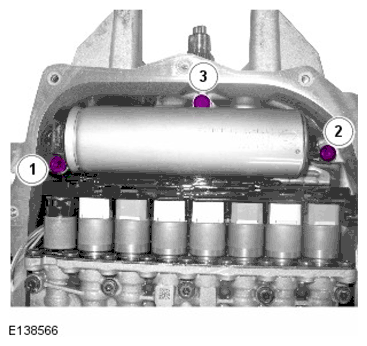

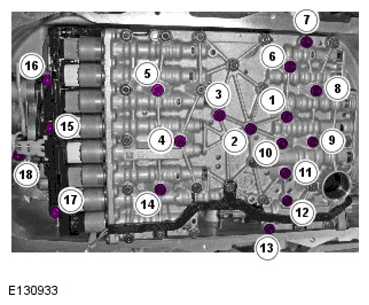

Fig 1: Transmission Control Module And Main Control Valve Body Bolts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Renew Part: Transmission control module and main control valve body bolts Quantity: 1 .

Torque Specification: 8 Nm

Vehicles with Stop/Start
CAUTION: Make sure that new bolts are installed.

NOTE: Tighten the retaining bolts evenly and progressively.

Fig 2: Transmission Fluid Pan Bolts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque Specification: 8 Nm
All vehicles
Refer to: TRANSMISSION FLUID PAN, GASKET AND FILTER
Using the diagnostic tool, calibrate the main control valve body and the transmission control module (TCM).
