Removal And Installation: Installation

WARNING: This page is about a different variant/trim than selected.

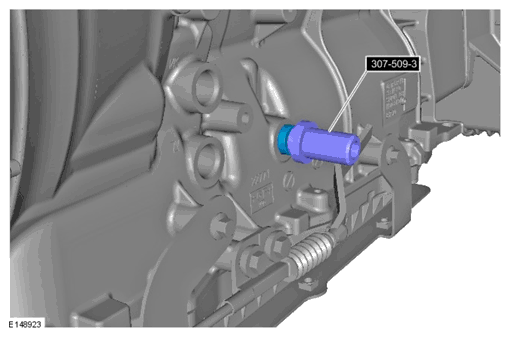

  1. G11599761

    Using 307-509-3, install the selector shaft seal.

    Clean the components.

  2. G11599759

    Install the selector cable and lever.

    Secure with the clip.

    Torque Specification: 12 Nm
