Removal And Installation: Removal

WARNING: This page is about a different variant/trim than selected.
CAUTION: Be prepared to collect escaping fluids.
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
  1. Refer to: TRANSMISSION .
  2. G11699897

    Special Tool(s): 307-613

    CAUTION:
    • Discard the seal.
    • Care must be taken to avoid damage to the seal register and running surface.

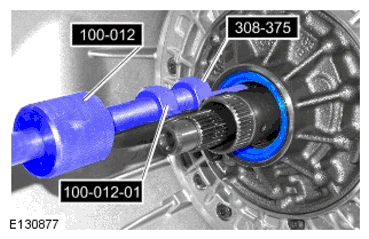

  3. G11599701

    Special Tool(s): 100-012, 100-012-01, 308-375
