Removal And Installation: Installation

WARNING: This page is about a different variant/trim than selected.

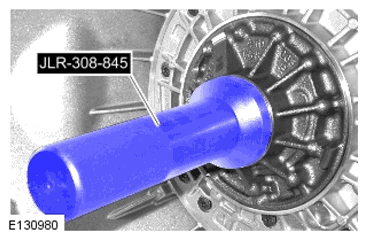

  1. CAUTION: Install a new seal.
    G11599702

    Special Tool(s): JLR-308-845

    Renew Part: Torque converter seal kit  Quantity: 1  .

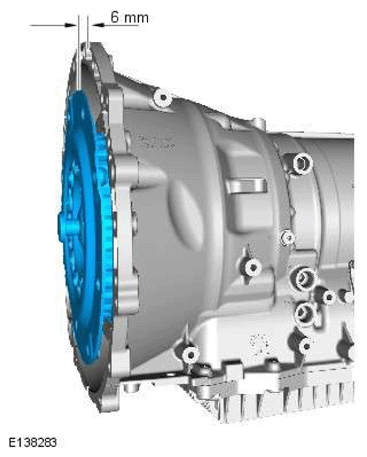

  2. CAUTION: Make sure the torque converter is fully located into the oil pump drive.
    G11607374
  3. Install the transmission and transfer gearbox.

    Refer to: TRANSMISSION .

  4. Refer to: TRANSMISSION FLUID LEVEL CHECK .
