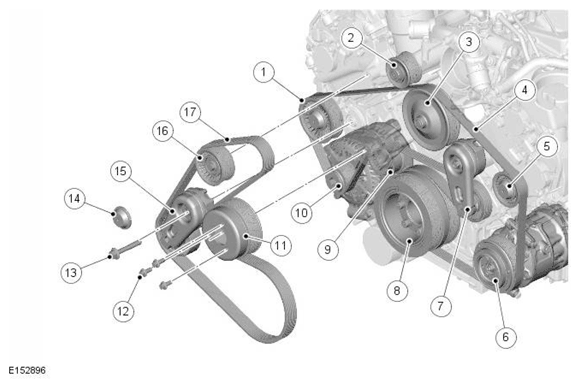

Component Location
WARNING: This page is about a different variant/trim than selected.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Idler Pulley |
| 2 | Supercharger (SC) Pulley |
| 3 | Coolant Pump Pulley |
| 4 | Primary Drive Belt |
| 5 | Idler Pulley |
| 6 | Air Conditioning Compressor |
| 7 | Primary Drive Belt Tensioner |
| 8 | Crankshaft Pulley/Torsional Vibration Damper |
| 9 | Idler Pulley |
| 10 | Generator |
| 11 | Viscous Cooling Fan Pulley |
| 12 | M8 Bolt (3 off) |
| 13 | M10 Bolt |
| 14 | Cover |
| 15 | Secondary Drive Belt Tensioner |
| 16 | Idler Pulley |
| 17 | Secondary Drive Belt |
