Removal And Installation: Removal

WARNING: This page is about a different variant/trim than selected.
WARNING: Observe due care when working near a hot exhaust system.
NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. G11699362

    Torque Specifications:

    M10 60 Nm

    M6 10 Nm

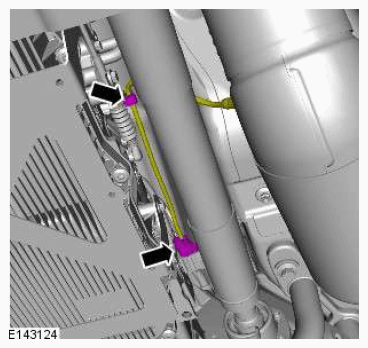

  3. G11608615
  4. CAUTION: Make sure that the mating faces are clean and free of foreign material.

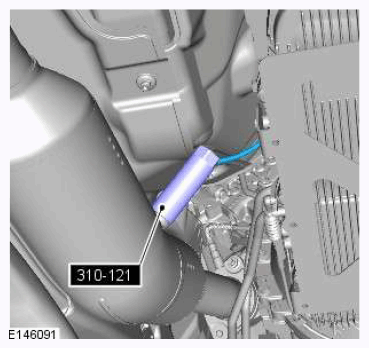

    G11608616

    Torque Specification: 48 Nm
