Removal And Installation: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.
  1. Disconnect the battery ground cable.

    Refer to: SPECIFICATIONS

  2. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  3. Refer to: SUPERCHARGER

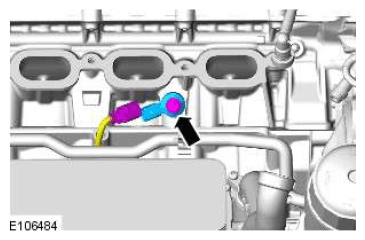

  4. NOTE: Note the orientation of the component prior to removal.
    G11608600

    Torque Specification: 20 Nm
