Control Diagram
WARNING: This page is about a different variant/trim than selected.

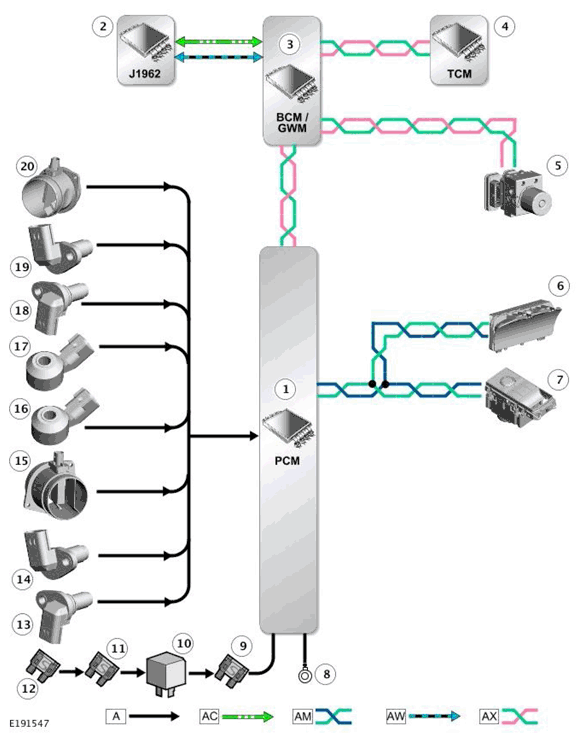

1 OF 2
A = HARDWIRED; AC = DIAGNOSTIC; AM = HIGH SPEED CAN CHASSIS SYSTEMS BUS; AW = ETHERNET; AX = FLEXRAY SYSTEMS BUS
| ITEM | DESCRIPTION |
|---|---|
| 1 | Powertrain Control Module (PCM) |
| 2 | J1962 diagnostic connector |
| 3 | Body Control Module/Gateway Module (BCM/GWM) |
| 4 | Transmission Control Module (TCM) |
| 5 | Anti-lock Brake System (ABS) control module |
| 6 | Instrument Cluster (IC) |
| 7 | Terrain Response® switchpack |
| 8 | Ground |
| 9 | Fuse - power supply Engine Junction Box (EJB) |
| 10 | PCM Relay - Engine Junction Box (EJB) |
| 11 | Fuse - power supply Auxiliary Junction Box (AJB) |
| 12 | Fuse - power supply Battery Junction Box (BJB) |
| 13 | Intake Camshaft Position (CMP) sensor - Bank 2 |
| 14 | Exhaust Camshaft Position (CMP) sensor - Bank 2 |
| 15 | Right Mass Air Flow and Temperature (MAFT) sensor |
| 16 | Knock sensor - Bank 1 |
| 17 | Knock sensor - Bank 2 |
| 18 | Intake Camshaft Position (CMP) sensor - Bank 1 |
| 19 | Exhaust Camshaft Position (CMP) sensor - Bank 1 |
| 20 | Left Mass Air Flow and Temperature (MAFT) sensor |

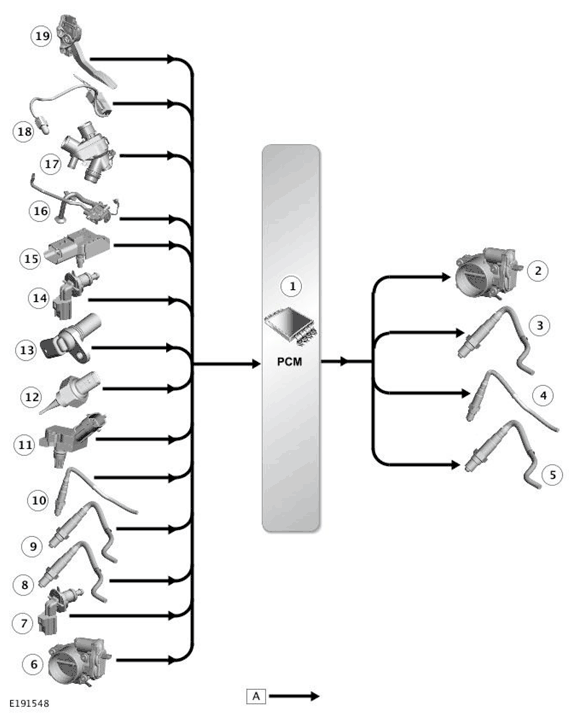

2 OF 2
A = HARDWIRED
| ITEM | DESCRIPTION |
|---|---|
| 1 | Powertrain Control Module (PCM) |
| 2 | Electric throttle |
| 3 | Heated Oxygen Sensor (HO2S) - Mid catalyst (2 off) |
| 4 | Heated Oxygen Sensor (HO2S) - Post catalyst (2 off) |
| 5 | Heated Oxygen Sensor (HO2S) - Pre catalyst (2 off) |
| 6 | Electric throttle |
| 7 | Engine Coolant Temperature (ECT) sensor 1 |
| 8 | Heated Oxygen Sensor (HO2S) - Mid catalyst (2 off) |
| 9 | Heated Oxygen Sensor (HO2S) - Post catalyst (2 off) |
| 10 | Heated Oxygen Sensor (HO2S) - Pre catalyst (2 off) |
| 11 | Manifold Absolute Pressure and Temperature (MAPT) sensor |
| 12 | Charge air temperature sensor |
| 13 | Crankshaft Position (CKP) sensor |
| 14 | Engine Coolant Temperature (ECT) sensor 2 |
| 15 | Manifold Absolute Pressure (MAP) sensor |
| 16 | Electric oil pump |
| 17 | Electric thermostat |
| 18 | Ambient Air Temperature (AAT) sensor |
| 19 | Accelerator Pedal Position (APP) sensor |
