Electronic Engine Controls V6 3.0L S/C Petrol - 3 Of 5
WARNING: This page is about a different variant/trim than selected.

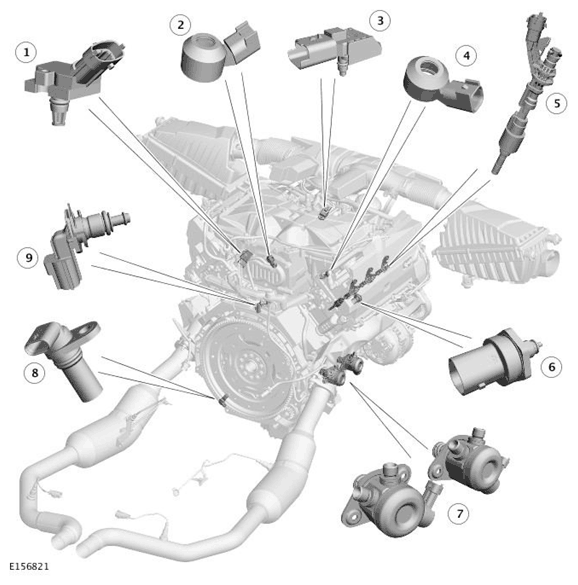

| ITEM | DESCRIPTION |
|---|---|
| 1 | Manifold Absolute Pressure and Temperature (MAPT) sensor |
| 2 | Knock sensor - Bank 2 |
| 3 | Manifold Absolute Pressure (MAP) sensor |
| 4 | Knock sensor - Bank 1 |
| 5 | Fuel injectors (6 off) |
| 6 | Fuel Rail Pressure and Temperature (FRPT) sensor |
| 7 | High Pressure (HP) fuel pump (2 off) |
| 8 | Crankshaft Position (CKP) sensor |
| 9 | Engine Coolant Temperature (ECT) sensor 1 |
