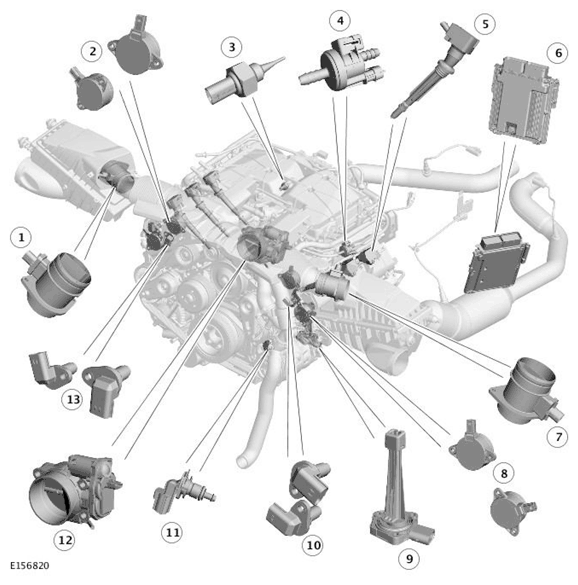

Electronic Engine Controls V6 3.0L S/C Petrol - 1 Of 5
WARNING: This page is about a different variant/trim than selected.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Right Mass Air Flow and Temperature (MAFT) sensor |
| 2 | Variable Camshaft Timing (VCT) actuator - Bank 1 (2 off) |
| 3 | Charge air temperature sensor |
| 4 | Evaporative Emissions (EVAP) purge valve |
| 5 | Ignition coil (6 off) |
| 6 | Powertrain Control Module (PCM) |
| 7 | Left Mass Air Flow and Temperature (MAFT) sensor |
| 8 | Variable Camshaft Timing (VCT) actuator - Bank 2 (2 off) |
| 9 | Oil level and temperature sensor |
| 10 | Camshaft Position (CMP) sensor - Bank 2 (2 off) |
| 11 | Engine Coolant Temperature (ECT) sensor 2 |
| 12 | Electric throttle |
| 13 | Camshaft Position (CMP) sensor - Bank 1 (2 off) |
