General Procedures: Check

WARNING: This page is about a different variant/trim than selected.
  1. Remove the brake pedal rubber.
  2. NOTE: Make sure that the dial test indicator (DTI) gauge is in line with the brake pedal movement.

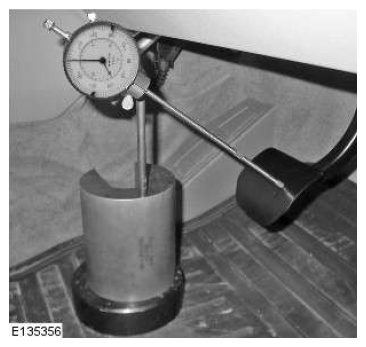

    G11608468

    Position the DTI gauge on a suitable mounting block, as illustrated.

  3. With the aid of another technician, gently press the brake pedal until the stop lamps illuminate.
  4. NOTE: The specification is that the stop lamps should illuminate at between 5.5 mm and 8.5mm brake pedal travel.

    Note the measurement of the brake pedal travel from rest position until the stop lamps illuminated.
