Ignition Switch

WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.

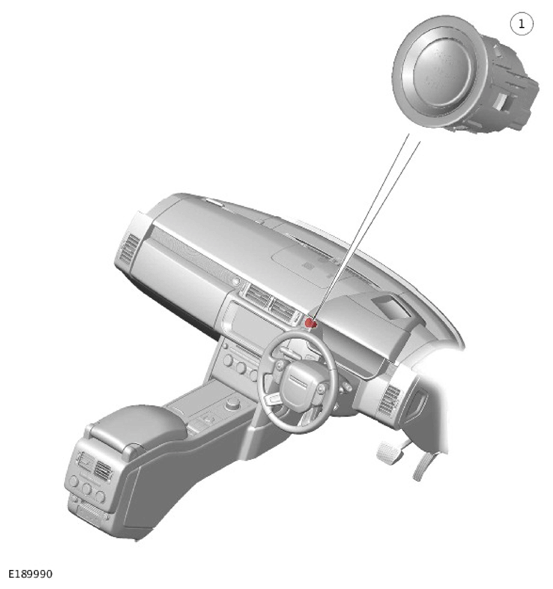

G11771207
ITEM DESCRIPTION
1 Ignition switch

The ignition switch is installed in the instrument panel and is hardwired to the Body Control Module/Gateway Module (BCM/GWM) assembly. When the switch is pressed two signal lines from the BCM/GWM assembly are connected to ground.
