Auto Stop/Start Switch - If Equipped

WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
G11771208

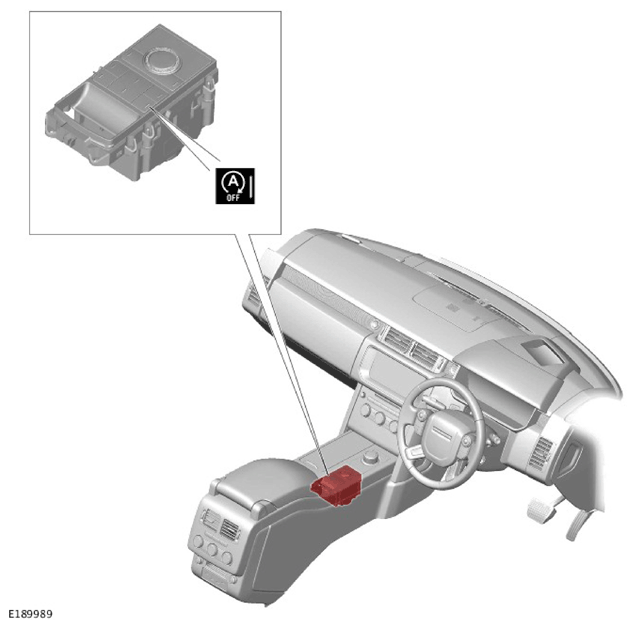

On vehicles with Auto stop/start system, the Auto stop/start switch is integrated into the Terrain Response (TR) switchpack in the floor console. An amber Light Emitting Diode (LED) in the Auto stop/start switch remains illuminated while the Auto stop/start system is active. Selection of the Auto stop/start switch is transmitted from the TR switchpack to the PCM on the High Speed (HS) Controller Area Network (CAN) chassis systems bus.
