Control Diagram
WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.

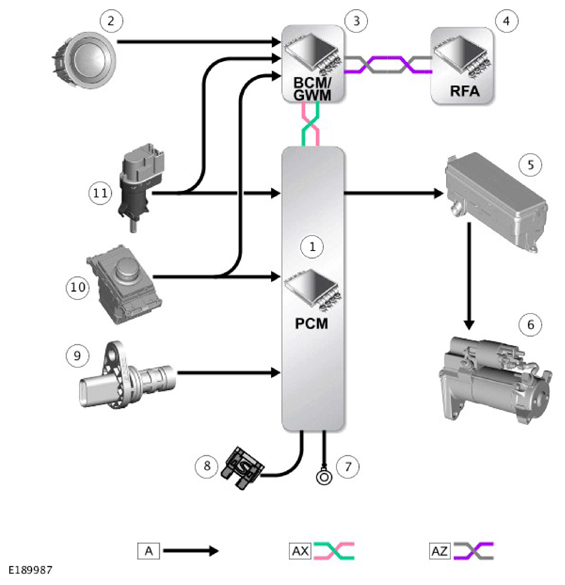

CONTROL DIAGRAM - 1 OF 2 - STARTING SYSTEM WITHOUT AUTO STOP/START SYSTEM
A = HARDWIRED; AX = FLEXRAY BUS; AZ = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) BODY SYSTEMS BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Powertrain Control Module (PCM) |
| 2 | Ignition switch |
| 3 | Body Control Module/Gateway Module (BCM/GWM) assembly |
| 4 | Remote Function Actuator (RFA) |
| 5 | Engine Junction Box (EJB) |
| 6 | Starter motor |
| 7 | Ground |
| 8 | Power supply |
| 9 | Crankshaft Position (CKP) sensor |
| 10 | Transmission Control Switch (TCS) - park/neutral signal |
| 11 | Brake pedal switch |

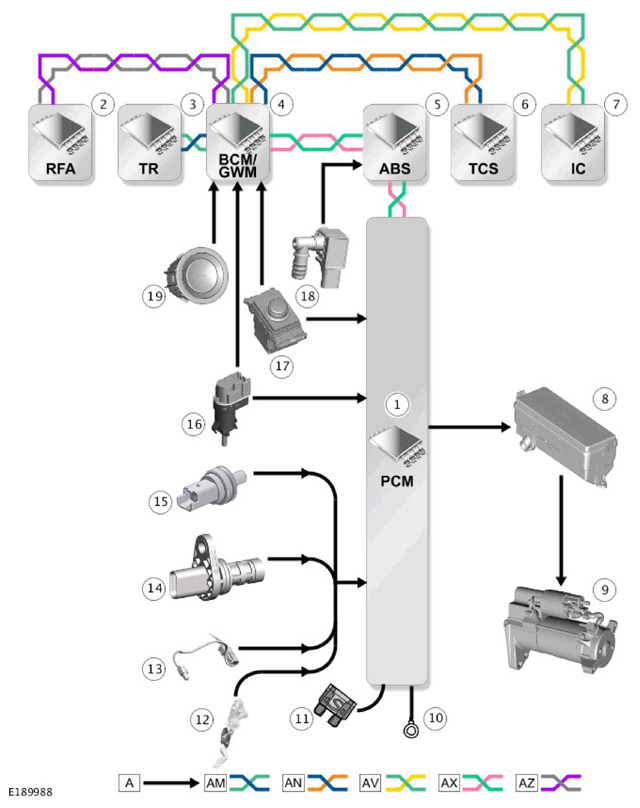

CONTROL DIAGRAM - 2 OF 2 - STARTING SYSTEM WITH AUTO STOP/START SYSTEM
A = HARDWIRED; AM = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) CHASSIS SYSTEMS BUS; AN = HS CAN POWERTRAIN SYSTEMS BUS; AV = HS CAN COMFORT SYSTEMS BUS; AX = FLEXRAY BUS; AZ = HS CAN BODY SYSTEMS BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Powertrain Control Module (PCM) |
| 2 | Remote Function Actuator (RFA) |
| 3 | Terrain Response (TR) switchpack |
| 4 | Body Control Module/Gateway Module (BCM/GWM) assembly |
| 5 | Anti-lock Brake System (ABS) control module |
| 6 | Transmission Control Switch (TCS) |
| 7 | Instrument Cluster (IC) |
| 8 | Engine Junction Box (EJB) |
| 9 | Starter motor |
| 10 | Ground |
| 11 | Power supply |
| 12 | Accelerator Pedal Position (APP) sensor |
| 13 | Ambient Air Temperature (AAT) sensor |
| 14 | Crankshaft Position (CKP) sensor |
| 15 | Engine Coolant Temperature (ECT) sensor |
| 16 | Brake pedal switch |
| 17 | Transmission Control Switch (TCS) - park/neutral signal |
| 18 | Brake vacuum sensor |
| 19 | Ignition switch |
