Component Location
WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.

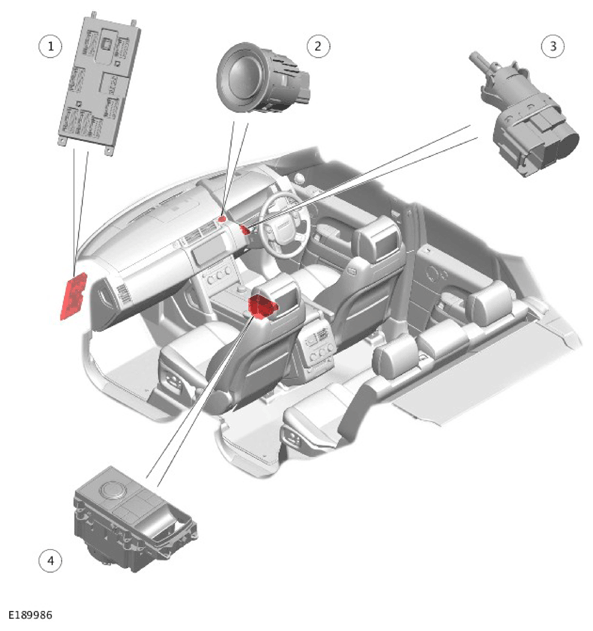

COMPONENT LOCATION - 1 OF 2
| ITEM | DESCRIPTION |
|---|---|
| 1 | Body Control Module/Gateway Module (BCM/GWM) assembly |
| 2 | Ignition switch |
| 3 | Brake pedal switch |
| 4 | Terrain Response (TR) switchpack |

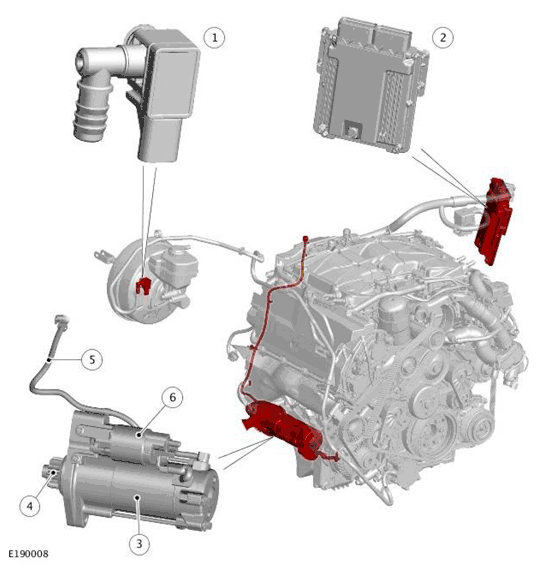

COMPONENT LOCATION - 2 OF 2
| ITEM | DESCRIPTION |
|---|---|
| 1 | Brake vacuum sensor |
| 2 | Powertrain Control Module (PCM) |
| 3 | Starter motor |
| 4 | Pinion gear |
| 5 | Breather tube |
| 6 | Solenoid |
