Removal And Installation: Removal
WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Disconnect the battery ground cable.
Refer to: SPECIFICATIONS
-
WARNING: Make sure to support the vehicle with axle stands.
Raise and support the vehicle.
- Refer to: ENGINE UNDERSHIELD

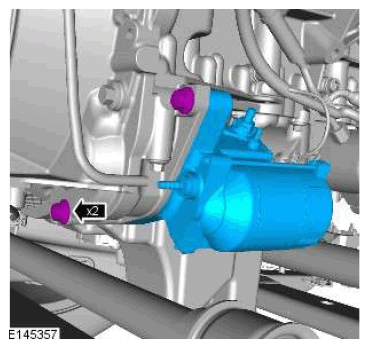

Torque Specifications:
M10 60 Nm
M6 10 Nm
-

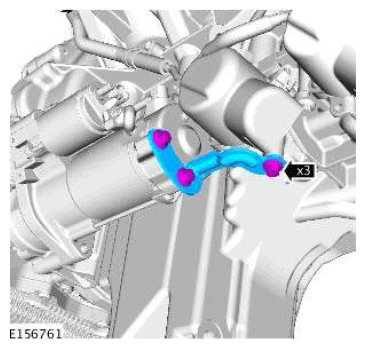

NOTE: If equipped with TSS.
Torque Specification: 6 Nm
Torque Specification: 7 Nm
Torque Specification: 10 Nm
-
NOTE: If equipped with TSS.
Torque Specification: 10 Nm
-
NOTE: If equipped with TSS.
-
NOTE: If equipped with TSS.
-
NOTE: If equipped with TSS.
Torque Specification: 25 Nm
Torque Specification: 40 Nm
