Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Make the air bag supplemental restraint system (SRS) safe.

    Refer to: STANDARD WORKSHOP PRACTICES

  2. Disconnect the battery ground cable.

    Refer to: SPECIFICATIONS

  3. Refer to: DRIVER AIRBAG MODULE
  4. NOTE: Make sure that the harness is routed to the position noted on removal.

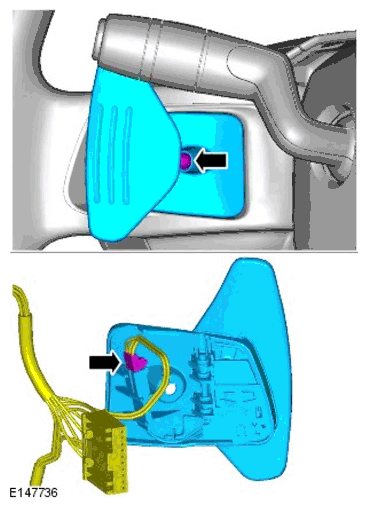

    G11599943

    Torque Specification: 3 Nm

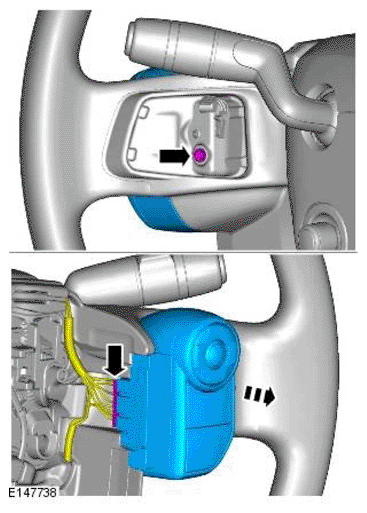

  5. G11701195

    Torque Specification: 3 Nm
