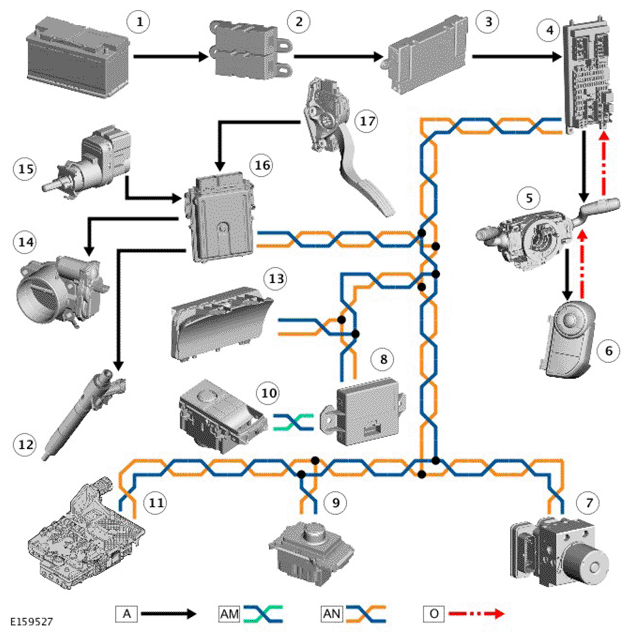

Control Diagram - Standard Speed Control
WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
A = HARDWIRED; AM = HIGH SPEED CAN CHASSIS SYSTEMS; AN = HIGH SPEED CAN POWERTRAIN SYSTEMS; O = LIN BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Battery |
| 2 | Battery junction box 2 |
| 3 | Battery junction box |
| 4 | Central junction box |
| 5 | Clockspring |
| 6 | Right steering wheel switchpack |
| 7 | Anti-lock brake system control module |
| 8 | Gateway module |
| 9 | Transmission control switch |
| 10 | Terrain Response® switchpack |
| 11 | Transmission control module |
| 12 | Fuel injectors |
| 13 | Instrument cluster |
| 14 | Electric throttle |
| 15 | Brake pedal switch |
| 16 | Engine control module |
| 17 | Accelerator pedal position sensor |
