Control Diagram - Adaptive Speed Control
WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.

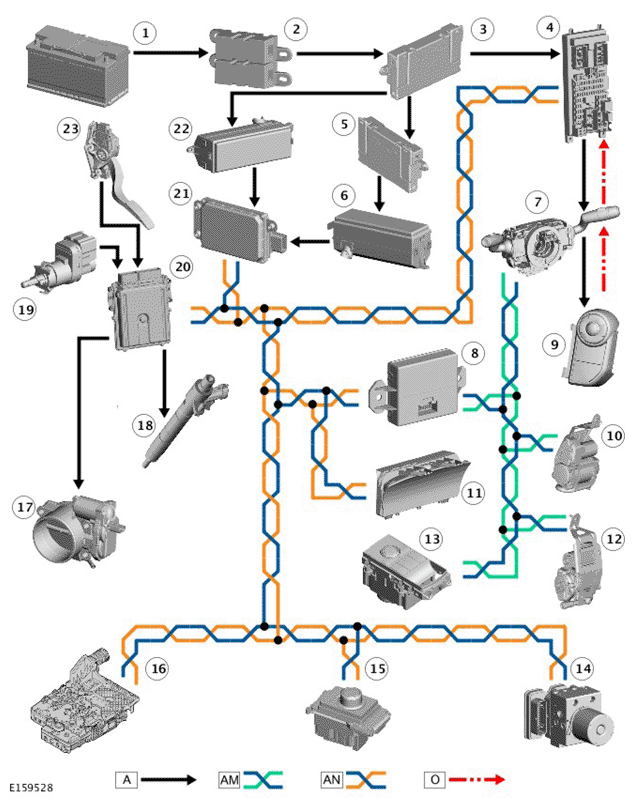

A = HARDWIRED; AM = HIGH SPEED CAN CHASSIS SYSTEMS; AN = HIGH SPEED CAN POWERTRAIN SYSTEMS; O = LIN BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Battery |
| 2 | Battery junction box 2 |
| 3 | Battery junction box |
| 4 | Central junction box |
| 5 | Auxiliary junction box |
| 6 | Engine junction box |
| 7 | Clockspring and steering angle sensor |
| 8 | Gateway module |
| 9 | Right steering wheel switchpack |
| 10 | Left active seatbelt retractor |
| 11 | Instrument cluster |
| 12 | Right active seatbelt retractor |
| 13 | Terrain Response® switchpack |
| 14 | Anti-lock brake system control module |
| 15 | Transmission control switch |
| 16 | Transmission control module |
| 17 | Electric throttle |
| 18 | Fuel injectors |
| 19 | Brake pedal switch |
| 20 | Engine control module |
| 21 | Adaptive speed control module |
