Standard Speed Control
WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.

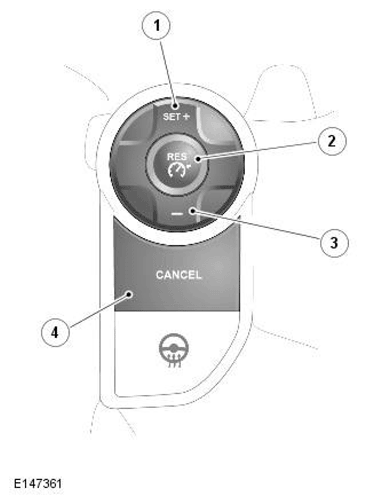

SPEED CONTROL SWITCHES
| ITEM | DESCRIPTION |
|---|---|
| 1 | Set + (engage/accelerate) switch |
| 2 | RES (resume) switch |
| 3 | - (decelerate) switch |
| 4 | CANCEL switch |
The standard speed control switches are located on the right steering wheel switchpack. The switches are resistive ladder type switches which vary the resistance of a 5 volt signal sent to them. The resistive ladder is wired to a LIN (local interconnect network) node which transmits the data to the CJB (central junction box) via the clockspring. The CJB then transmits the data on the high speed CAN (controller area network) powertrain systems.
