Fuel Cooler
WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.

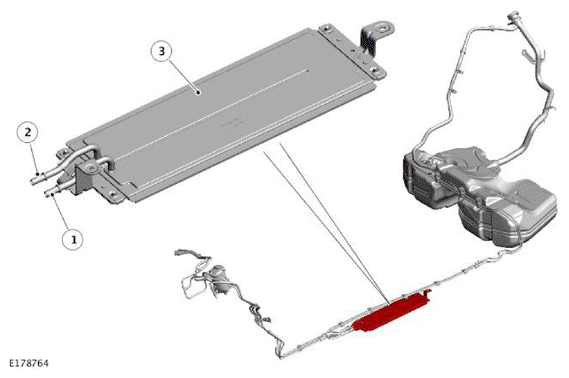

| ITEM | DESCRIPTION |
|---|---|
| 1 | Inlet - Feed from fuel tank and return from engine fuel rail |
| 2 | Fuel feed outlet |
| 3 | Fuel cooler (low pressure side - under vehicle) |
The low pressure side fuel cooler is situated under the vehicle floorpan, below the left front seat.
The cooler is air cooled. Fuel flow through the underfloor cooler is controlled by the fuel filter.
