TDV6 3.0L Diesel - Fuel Tank And Lines
WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.

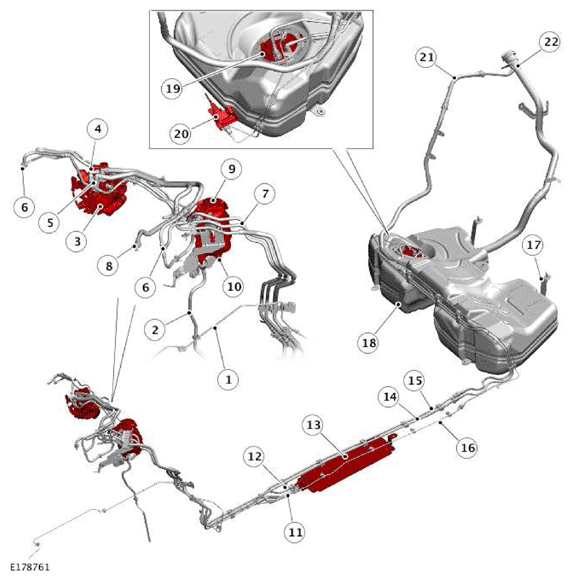

| ITEM | DESCRIPTION |
|---|---|
| 1 | Fuel supply pipe - Fuel Fired Booster Heater (FFBH) (if fitted) |
| 2 | Fuel filter water drain tube |
| 3 | High Pressure (HP) fuel pump |
| 4 | Pipe - fuel return from High Pressure (HP) pump |
| 5 | Pipe - fuel return to fuel tank |
| 6 | Pipe - injector leak-off return line |
| 7 | Pipe - fuel return from fuel rail to fuel cooler |
| 8 | Pipe - fuel supply from fuel filter to HP fuel pump |
| 9 | Fuel filter assembly |
| 10 | Water In Fuel (WIF) sensor |
| 11 | Line - fuel return from engine to fuel cooler |
| 12 | Line - fuel supply from fuel cooler to fuel filter |
| 13 | Fuel cooler (low pressure side - under vehicle) |
| 14 | Line - fuel return to fuel tank |
| 15 | Line - fuel supply from fuel pump module |
| 16 | Line - Fuel Fired Booster Heater (FFBH) supply (if fitted) |
| 17 | Fuel tank support strap (2 off) |
| 18 | Fuel tank assembly |
| 19 | Fuel pump module |
| 20 | Fuel Fired Booster Heater (FFBH) fuel pump (if fitted) |
| 21 | Pipe - fuel tank breather |
| 22 | Pipe - Fuel filler |
