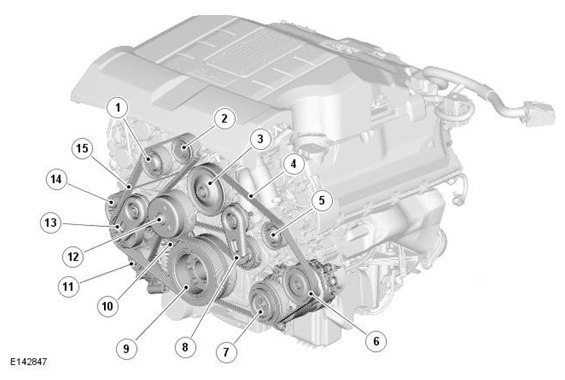

Component Location - Supercharged Vehicles
WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, 2016 Land Rover Range Rover, 2014 Land Rover Range Rover, and 2013 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Idler pulley |
| 2 | Supercharger |
| 3 | Coolant pump |
| 4 | Primary drive belt |
| 5 | Idler pulley |
| 6 | Dynamic response pump |
| 7 | Air conditioning compressor |
| 8 | Primary belt tensioner |
| 9 | Crankshaft pulley/torsional vibration damper |
| 10 | Idler pulley |
| 11 | Generator |
| 12 | Viscous cooling fan pulley |
| 13 | Secondary belt tensioner |
| 14 | Idler pulley |
