Component Location - Naturally Aspirated Vehicles

WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, 2016 Land Rover Range Rover, 2014 Land Rover Range Rover, and 2013 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.

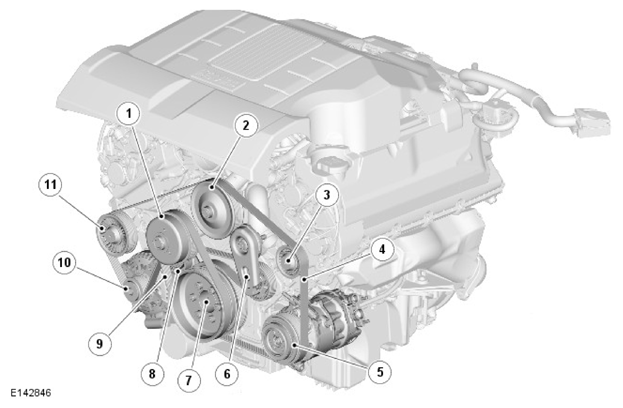

G11771074
ITEM DESCRIPTION
1 Viscous cooling fan pulley
2 Coolant pump
3 Idler pulley
4 Primary drive belt
5 Air conditioning compressor
6 Belt tensioner
7 Crankshaft pulley/torsional vibration damper
8 Idler pulley
9 Secondary drive belt
10 Generator
11 Idler pulley
