Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Disconnect the battery ground cable.

    Refer to: SPECIFICATIONS

  2. Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING
  3. NOTE: Note the fitted position of the accessory drive belt.

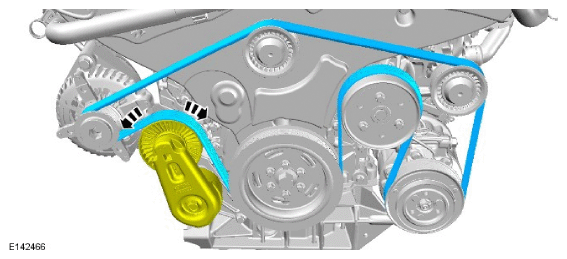

    Fig 1: Accessory Drive Belt Routing
    G11715382Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

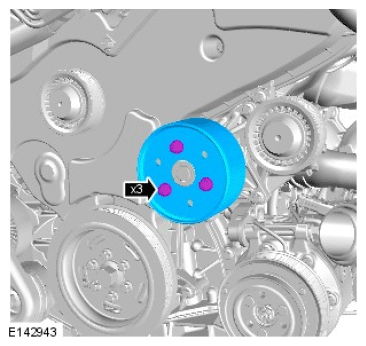

  4. G11715383
    • Using a suitable 6mm bar, retain the coolant pump pulley.
    • Torque Specification:  25 Nm

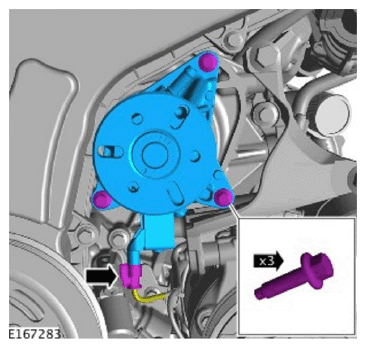

  5. G11715384

    Torque Specification:  10 Nm

  6. CAUTION: A new O-ring seal is to be installed.

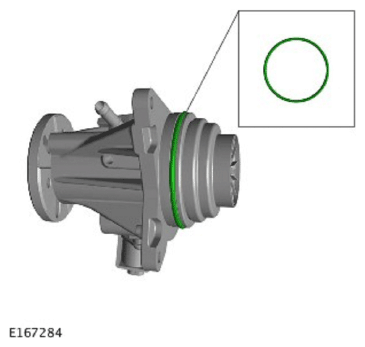

    G11715385
