Control Diagram - Sheet 1 Of 2 - Vehicles With Single Turbocharger

WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: A  = Hardwired.

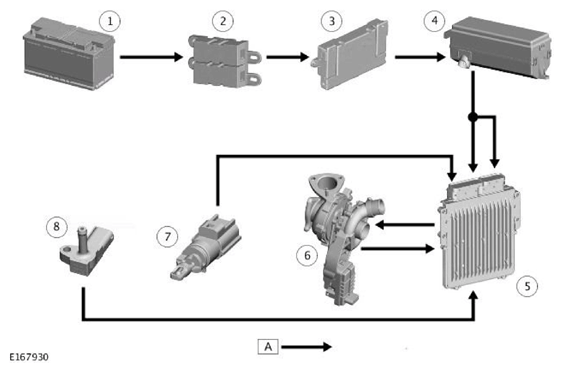

G11710183
ITEM DESCRIPTION
1 Battery
2 Battery Junction Box 2 (BJB2)
3 Battery Junction Box (BJB)
4 Engine Junction Box (EJB)
5 Engine Control Module (ECM)
6 Variable Geometry Turbine (VGT) vane actuator
7 Charge air temperature sensor
8 Charge air pressure sensor
