Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

Disconnect the battery ground cable.
Refer to: SPECIFICATIONS
Drain the engine oil.
Remove the EGR valve.
Refer to: RIGHT EXHAUST GAS RECIRCULATION VALVE
Remove the starter motor.
Refer to: STARTER MOTOR

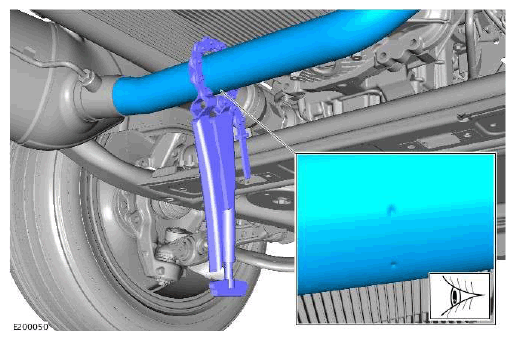

Cut the exhaust in the position illustrated.

Special Tool(s): 100-051
Remove the exhaust gas temperature sensor.
Remove the bolts.

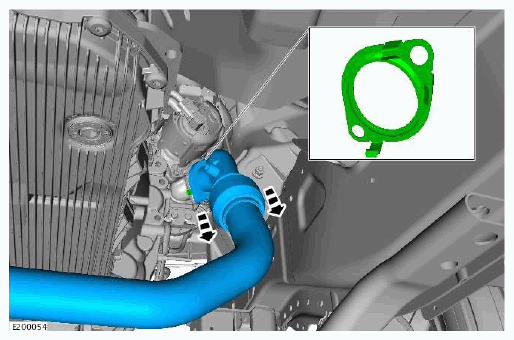

- Remove the exhaust down pipe.
- Remove and discard the gasket.
CAUTION: Be prepared to collect escaping oil.

NOTE: Discard the seal.

Remove the turbocharger oil return pipe.
Remove the Exhaust heatshield.
Remove the exhaust manifold heatshield.
Disconnect the harness.
Remove the vacuum pipe.
CAUTION: Be prepared to collect escaping oil.

Remove the banjo bolt.
Remove the clip.
Remove the charge air duct.
Remove the intake air duct.
Remove the bracket.
NOTE: Discard the gasket.
- Remove the bolts.
- Remove the turbocharger.
