Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

Refer to: ENGINE OIL DRAINING AND FILLING
Refer to: EXHAUST SYSTEM - VEHICLES WITH: DIESEL PARTICULATE FILTER (DPF)
Refer to: EXHAUST SYSTEM - VEHICLES WITH: DIESEL PARTICULATE FILTER (DPF)
Refer to: LEFT EXHAUST GAS RECIRCULATION VALVE - TDV6 3.0L DIESEL - GEN 2
Refer to:TRANSMISSION FLUID COOLER TUBES - TDV6 3.0L DIESEL

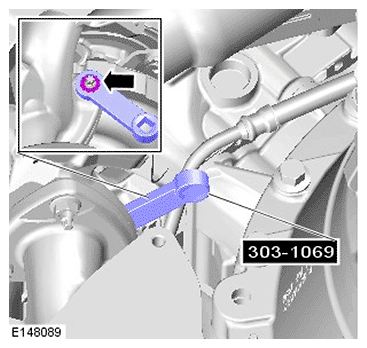

Torque Specification: 10 Nm
CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE: Install a new gasket.

Renew Part: Turbocharger oil return pipe to cylinder block gasket Quantity: 1 .

Torque Specification: 9 Nm
CAUTION: Make sure that the area around the component is clean and free of foreign material.

NOTE: Install new gaskets.

Renew Part: Turbocharger oil return pipe to turbocharger gasket Quantity: 1 .

Torque Specification: 9 Nm
Torque Specification: 9 Nm
WARNING: Be prepared to collect escaping oil.

CAUTION: Make sure that new sealing washers are installed.

Renew Part: Turbocharger oil feed pipe banjo bolt Quantity: 1 .

Renew Part: Turbocharger oil feed pipe banjo bolt washers Quantity: 1 .

Torque Specification: 30 Nm
CAUTION: Apply Loctite 243 to the bolts.

NOTE: Make sure to clean the threads prior to installation.

Torque Specification: 32 Nm
WARNING: Be prepared to collect escaping fluids.

Torque Specification: 11 Nm
WARNING: Be prepared to collect escaping fluids.

CAUTION: Remove and discard the O-ring seal.

Renew Part: Turbocharger coolant pipe Quantity: 1 .

Torque Specification: 10 Nm
NOTE: Remove and discard the nut.

Renew Part: Exhaust manifold to turbocharger nuts Quantity: 1 .

Torque Specification: 26 Nm
NOTE: Remove and discard the nut.

Renew Part: Exhaust manifold to turbocharger nuts Quantity: 1 .

Renew Part: Turbocharger to exhaust manifold gasket Quantity: 1 .

Torque Specification: 26 Nm
NOTE: Remove and discard the gasket.

Renew Part: Turbocharger coolant pipes to turbocharger gasket Quantity: 1 .

Torque Specification: 9 Nm
