Removal And Installation: Installation

WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Make sure that the mating faces are clean and free of corrosion and foreign material.

NOTE: Install a new gasket.

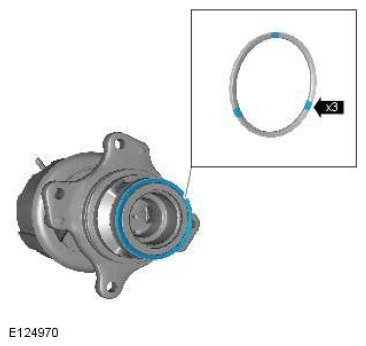

Renew Part: Fixed vane turbocharger actuator gasket kit Quantity: 1 .
CAUTION: Make sure that the mating faces are clean and free of corrosion and foreign material.

NOTE: Install a new gasket.
CAUTION: Install all the bolts finger tight before final tightening.
- Using a suitable 130mm T30 Torx socket, remove the retaining bolts.
  Torque Specification: 12 Nm
Torque Specification: 9 Nm
Torque Specification: 9 Nm
Refer to: ENGINE UNDERSHIELD
Refer to: EXHAUST SYSTEM - VEHICLES WITH: DIESEL PARTICULATE FILTER (DPF)
Refer to: EXHAUST SYSTEM - VEHICLES WITHOUT: DIESEL PARTICULATE FILTER (DPF)
If a new fixed vane turbocharger actuator is installed, carry out the reset procedure for the fixed vane turbocharger actuator using approved diagnostic tool.
