Component Location - Low Pressure (LP) Exhaust Gas RECIRCULATION System

WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.

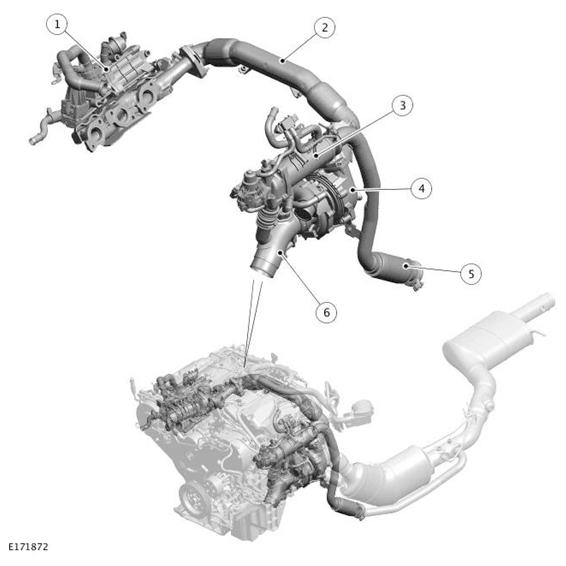

G11698357
ITEM DESCRIPTION
1 Right EGR cooler and valve housing
2 Exhaust manifold
3 Low Pressure (LP) Exhaust Gas Recirculation (EGR) cooler and valve housing
4 Turbocharger
5 Exhaust gas inlet from post Diesel Particulate Filter (DPF)
6 Clean air inlet from air intake system
